Question: PROBLEM 3 . 5 3 Four 1 1 2 - in . - diameter pegs are attached to a board as shown. Two strings are

PROBLEM 3.53

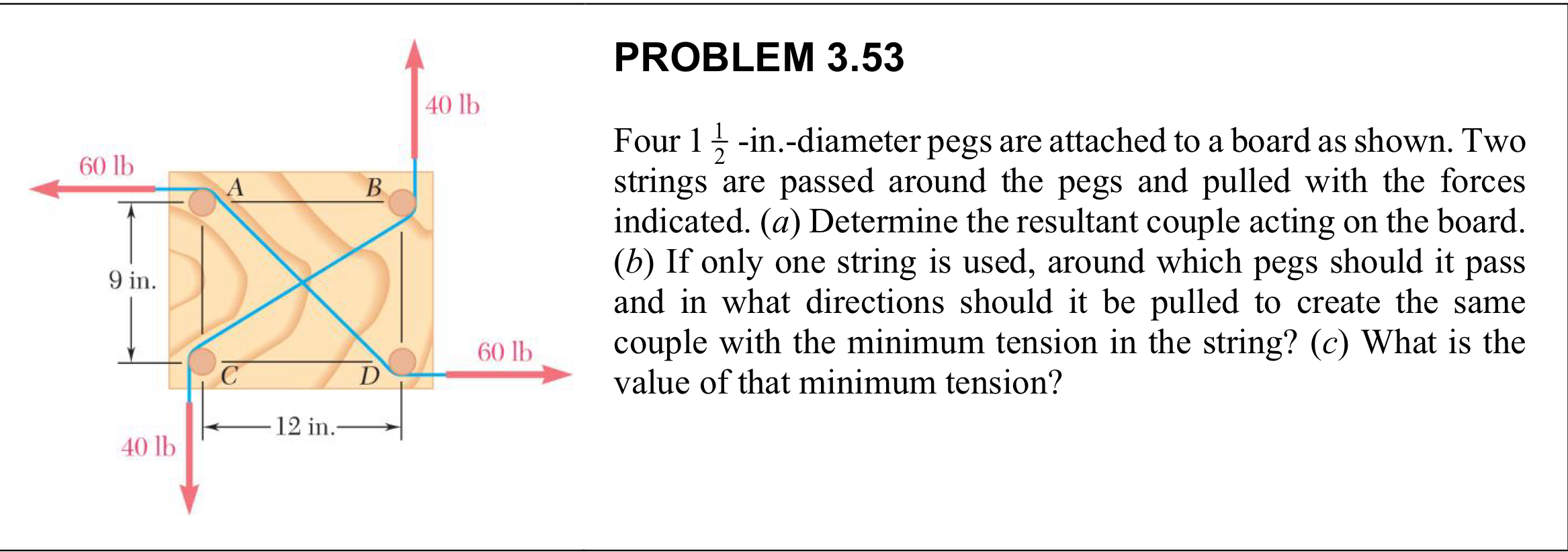

Four 112-in.-diameter pegs are attached to a board as shown. Two strings are passed around the pegs and pulled with the forces indicated. (a) Determine the resultant couple acting on the board. (b) If only one string is used, around which pegs should it pass and in what directions should it be pulled to create the same couple with the minimum tension in the string? (c) What is the value of that minimum tension?
PROBLEM 3 . 5 3 Four 1 1 2 - in . - diameter pegs

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
