Question: Problem 3 ( 5 points ) Water is being removed from the tank using a siphon. As the elevation of highest point ( labeled 3

Problem 3(5 points)

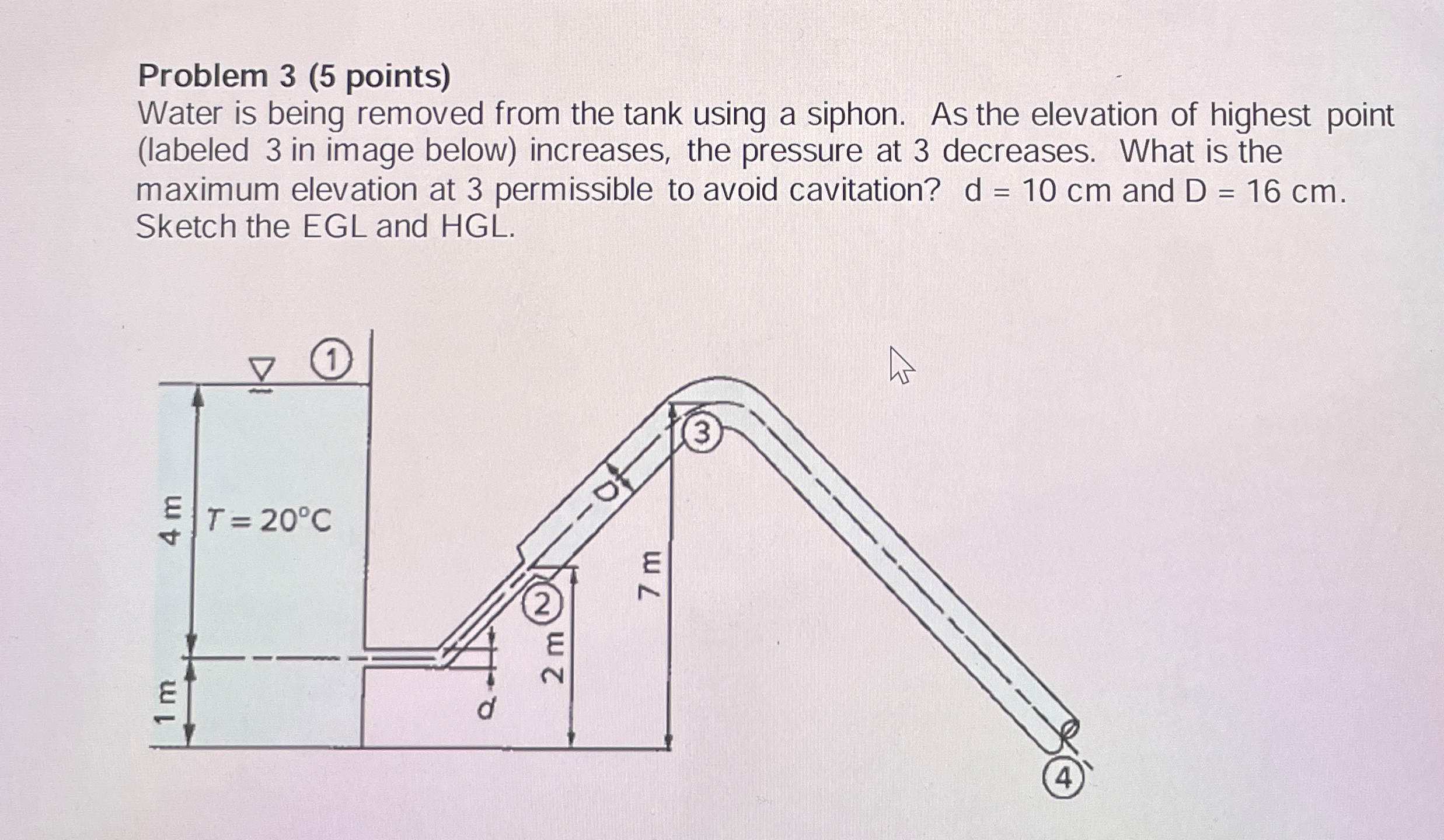

Water is being removed from the tank using a siphon. As the elevation of highest point (labeled 3 in image below) increases, the pressure at 3 decreases. What is the maximum elevation at 3 permissible to avoid cavitation? d=10cm and D=16cm. Sketch the EGL and HGL.
Problem 3 ( 5 points ) Water is being removed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
