Question: PROBLEM 3 . 7 7 Solve Prob. 3 . 7 6 , assuming that two 1 0 - N vertical forces have been added, one

PROBLEM 3.77

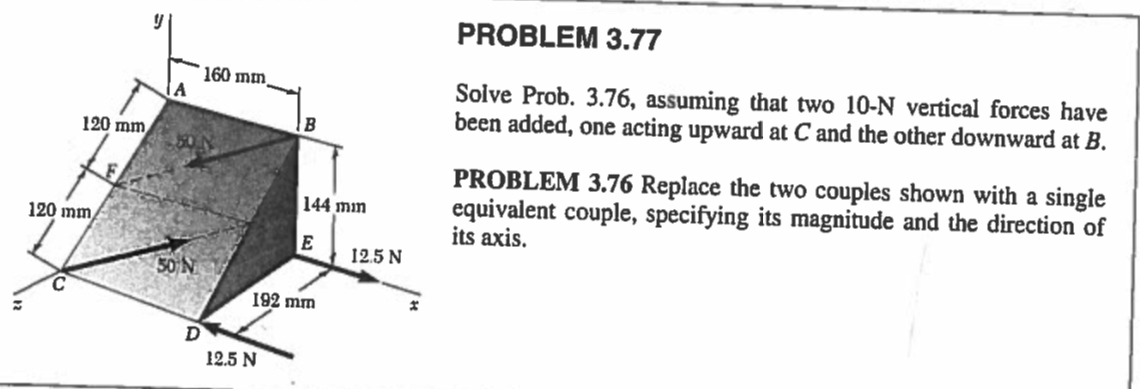

Solve Prob. 3.76, assuming that two 10-N vertical forces have been added, one acting upward at C and the other downward at B.
PROBLEM 3.76 Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis.
PROBLEM 3 . 7 7 Solve Prob. 3 . 7 6 , assuming

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
