Question: PROBLEM 3 . 7 8 The two couples shown are to be replaced with a single equivalent couple. Deternine ( a ) the couple vector

PROBLEM 3.78

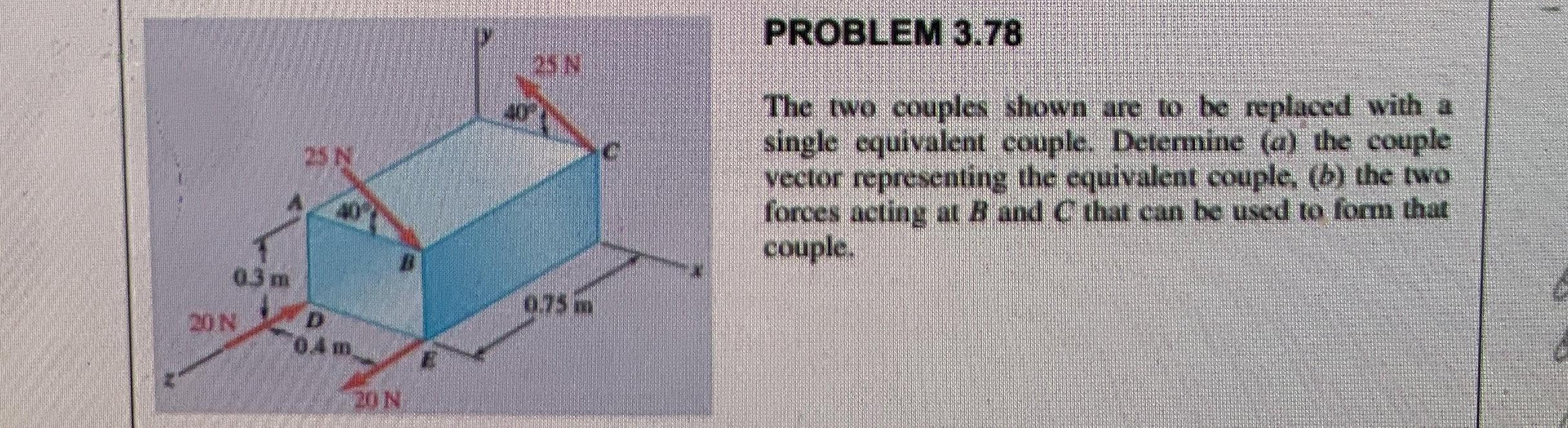

The two couples shown are to be replaced with a single equivalent couple. Deternine (a) the couple vector representing the equivalent couple, (b) the two forces acting at B and C that can be used to form that couple.
PROBLEM 3 . 7 8 The two couples shown are to be

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
