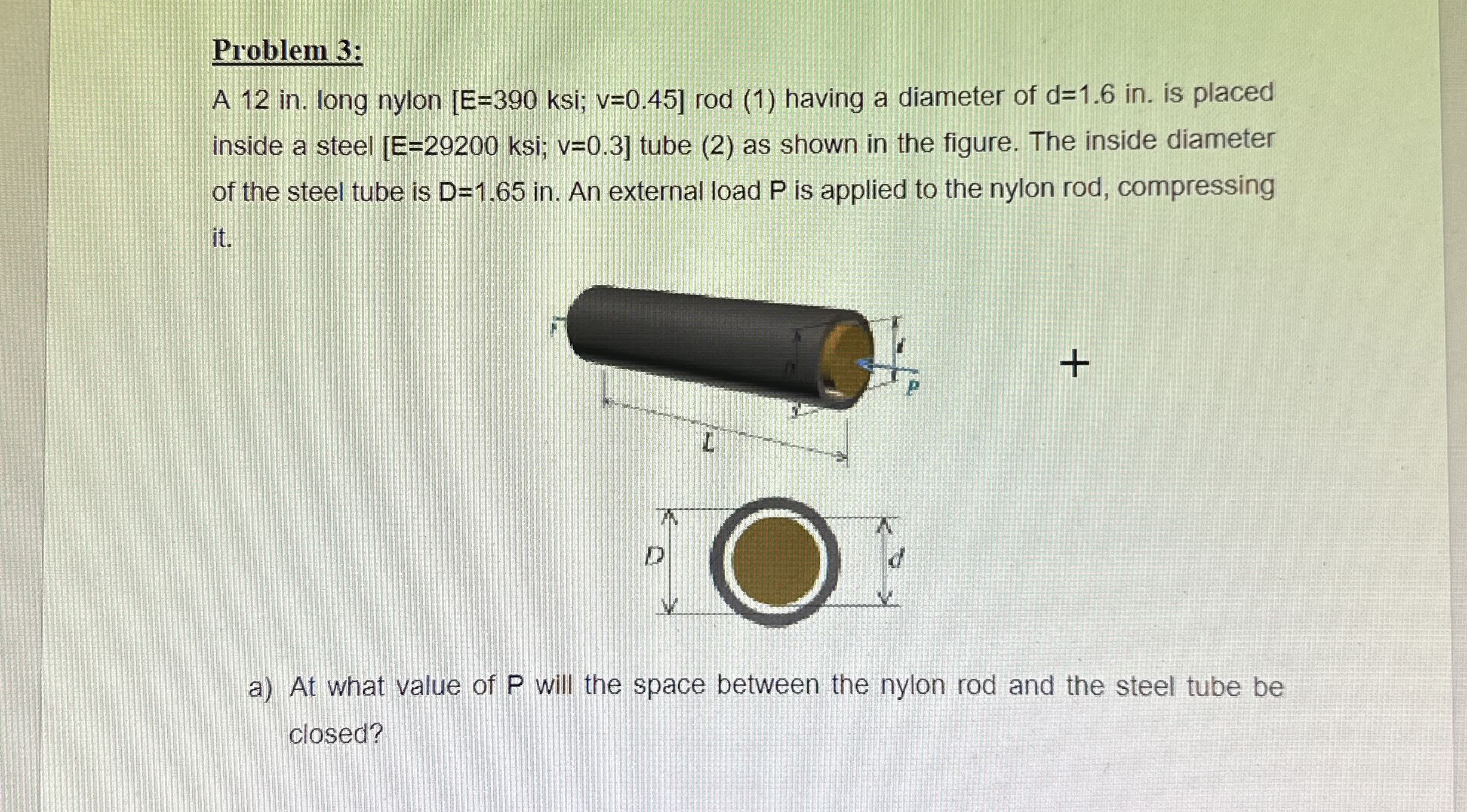

Problem 3:
A 12 in . long nylon ] rod (1) having a diameter of d=1.6in. is placed inside a steel E=29200ksi;v=0.3 tube (2) as shown in the figure. The inside diameter of the steel tube is D=1.65 in. An external load P is applied to the nylon rod, compressing it.
a) At what value of P will the space between the nylon rod and the steel tube be closed?
Problem 3 : A 1 2 in . long nylon ] rod ( 1 )
