Question: PROBLEM 3 A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given below, determine

PROBLEM

3

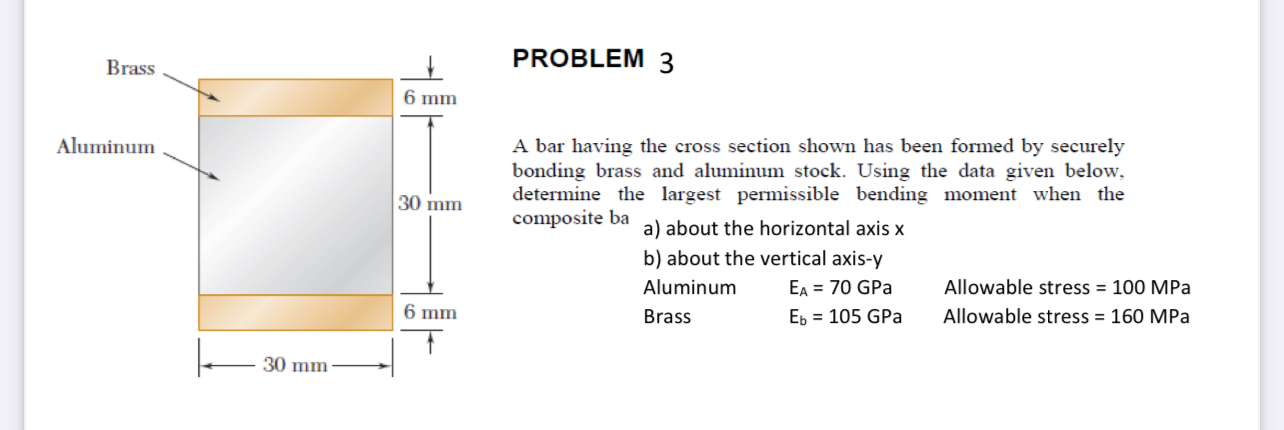

A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given below, determine the largest permissible bending moment when the composite ba

)

about the horizontal axis

x

)

about the vertical axis

-

Aluminum

E_{A} = 70

GPa

Allowable stress

= 100

MPa

Brass

E_{b} = 105

GPa

Allowable stress

= 160

MPa

PROBLEM 3 A bar having the cross section shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units. A bar having the cross section shown has been formed by securely bonding brass and aluminum...

A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given below, determine the largest permissible bending moment when the composite bar...

show all 4.33 and 4.34 A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given below, determine the largest permissible bending moment...
