Question: Problem 3 A coil is moved through a magnetic field as shown in the figure below. The field is uniform inside the rectangle and zero

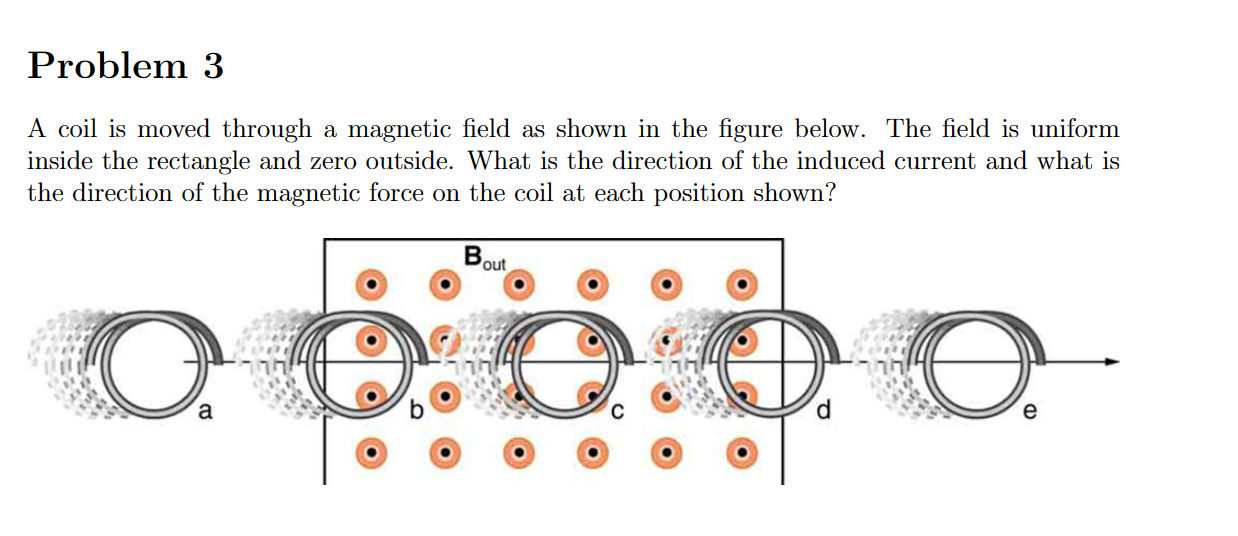

Problem 3 A coil is moved through a magnetic field as shown in the figure below. The field is uniform inside the rectangle and zero outside. What is the direction of the induced current and what is the direction of the magnetic force on the coil at each position shown? OLII @@0@@@

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
