Question: Problem 3 ( a ) Represent the resultant of the force system acting on the pipe assembly by a single force and a couple at

Problem 3

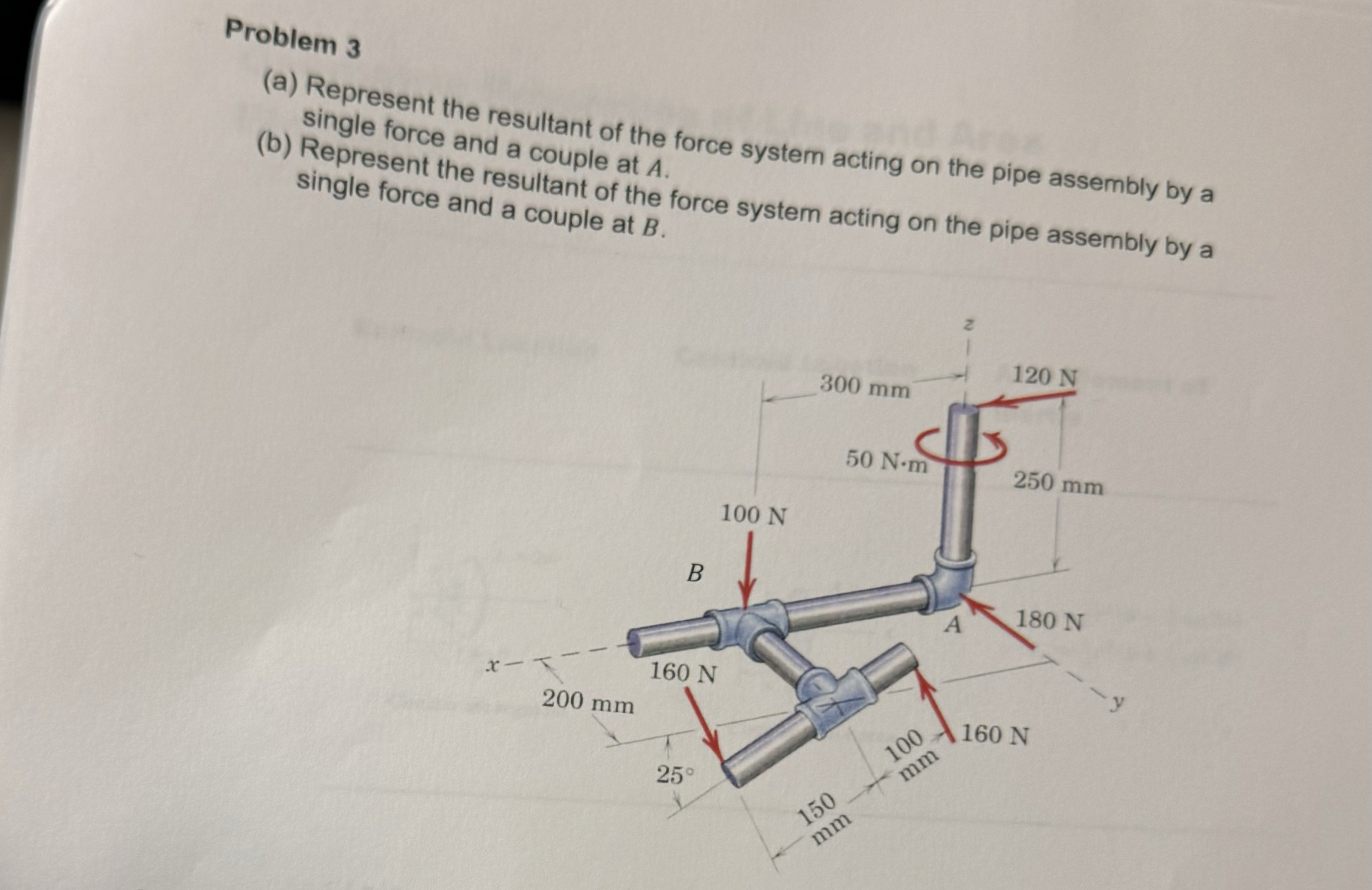

(a) Represent the resultant of the force system acting on the pipe assembly by a single force and a couple at A.
(b) Represent the resultant of the force system acting on the pipe assembly by a single force and a couple at B.
Problem 3 ( a ) Represent the resultant of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
