Question: Problem 3 : Consider the BJT circuit below, setting the value of I E = 1 m A . For = 3 0 , V

Problem 3:

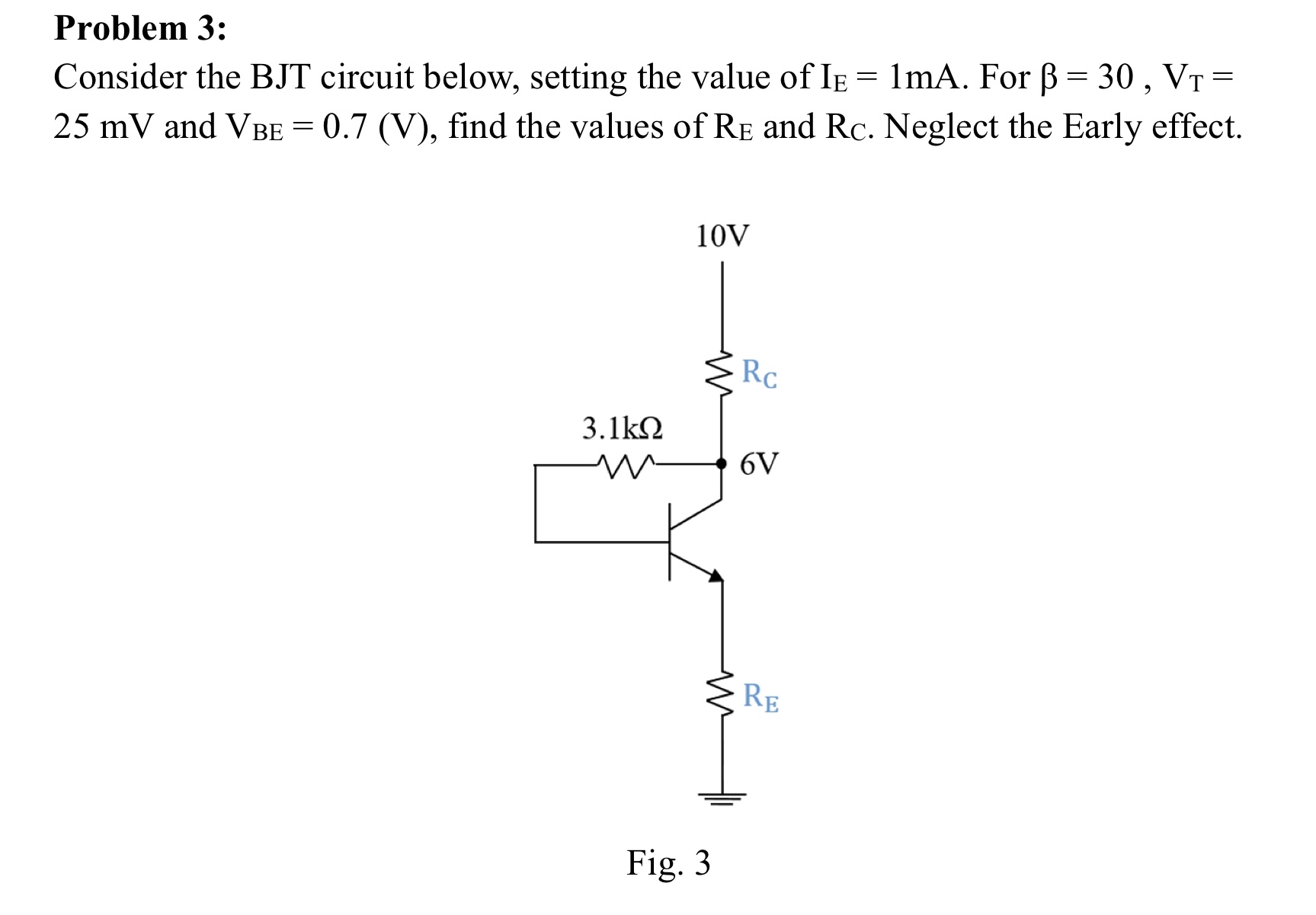

Consider the BJT circuit below, setting the value of IE=1mA. For =30,VT=25 mV and VBE=0.7(V), find the values of RE and RC. Neglect the Early effect.
Fig. 3
Problem 3 : Consider the BJT circuit below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
