Question: Problem 3 Consider the rectangular beam below, of Young's modulus E and second moment of area/ Draw a free-body diagram of the beam. Write

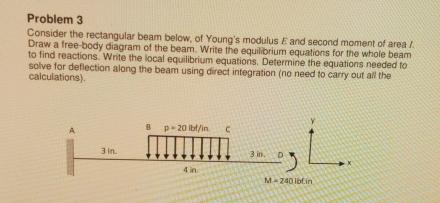

Problem 3 Consider the rectangular beam below, of Young's modulus E and second moment of area/ Draw a free-body diagram of the beam. Write the equilibrium equations for the whole beam to find reactions. Write the local equilibrium equations. Determine the equations needed to solve for deflection along the beam using direct integration (no need to carry out all the calculations). 3 in. 8 p 20 lb/in C 3 in L 4 in M-240 lbfin

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
