Question: Problem 3 Consider the situation shown in the figure. The two blocks have identical masses, 5kg each, and are connected by an ideal, massless string

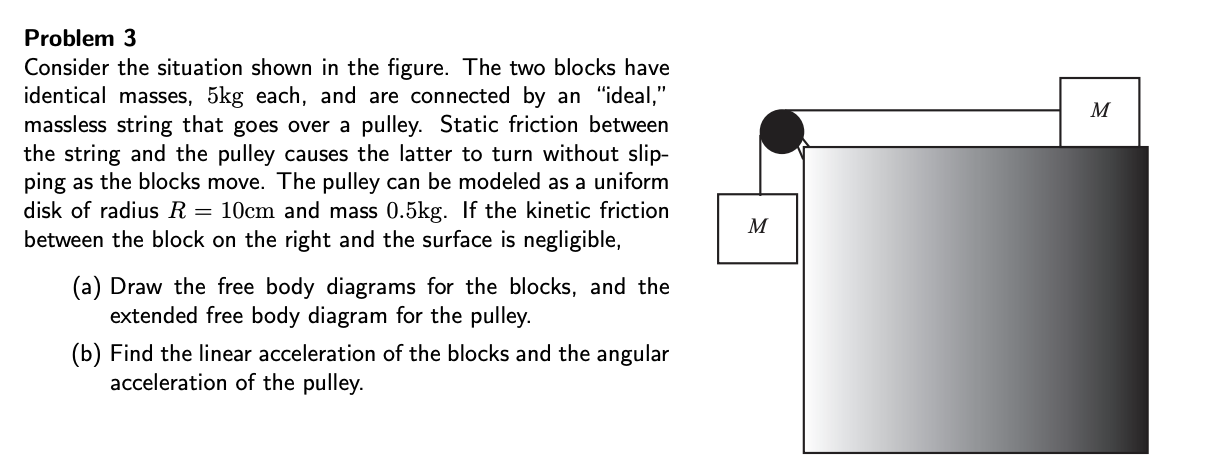

Problem 3 Consider the situation shown in the figure. The two blocks have identical masses, 5kg each, and are connected by an "ideal," massless string that goes over a pulley. Static friction between the string and the pulley causes the latter to turn without slip- ping as the blocks move. The pulley can be modeled as a uniform disk of radius R 2 100m and mass 0.5kg. If the kinetic friction between the block on the right and the surface is negligible, (a) Draw the free body diagrams for the blocks, and the extended free body diagram for the pulley. (b) Find the linear acceleration of the blocks and the angular acceleration of the pulley

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
