Question: Problem 3 . E / R Diagram Translation Translate the following E / R diagram into a set of relations. Please write out the schemas

Problem

3 .

/

R Diagram Translation

Translate the following E

/

R diagram into a set of relations. Please write out the schemas for each relation.

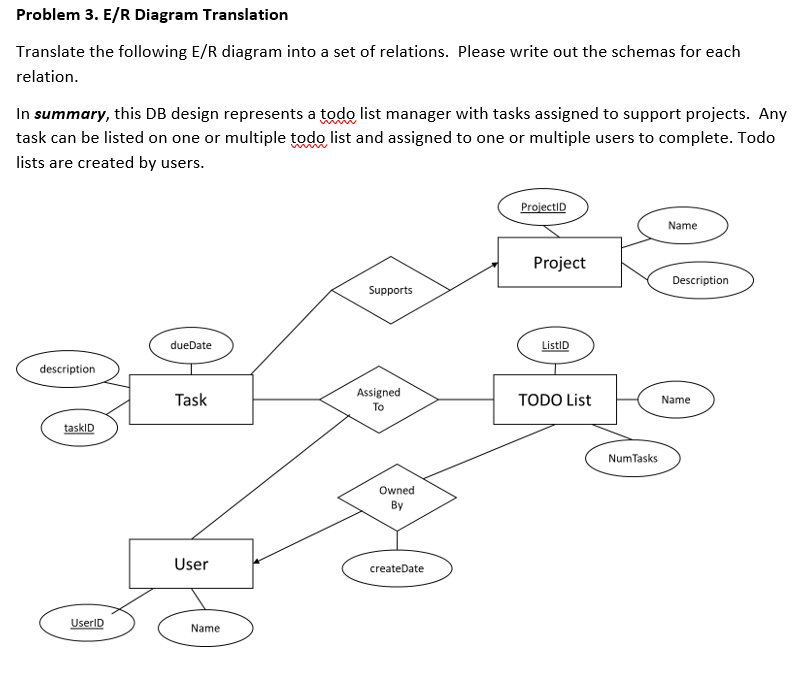

In summary, this DB design represents a todo list manager with tasks assigned to support projects. Any task can be listed on one or multiple todo list and assigned to one or multiple users to complete. Todo lists are created by users.
