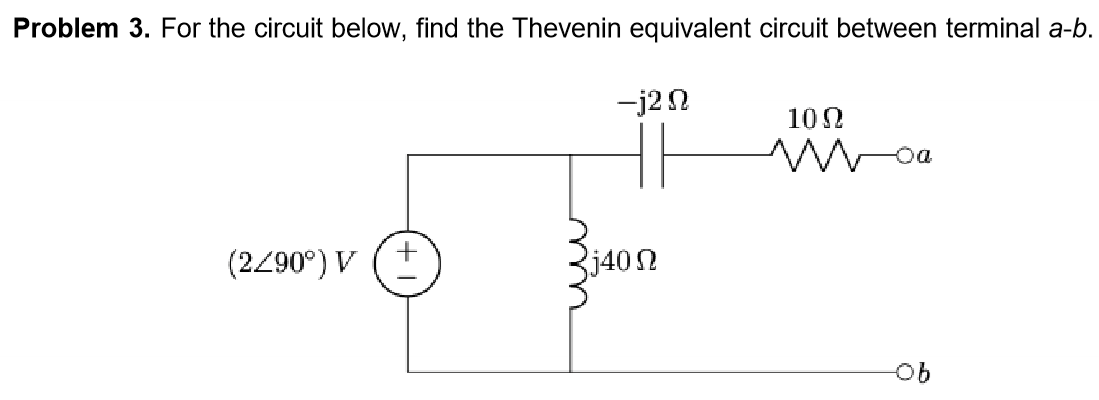

Question: Problem 3 . For the circuit below, find the Thevenin equivalent circuit between terminal ( a - b ) .

Problem 3. For the circuit below, find the Thevenin equivalent circuit between terminal \( a-b \).
Problem 3 . For the circuit below, find the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
