Question: Problem 3 . For the following built up beam, calculate the shear flow q ( lbs / in or kips / in ) at the

Problem 3. For the following built up beam, calculate the shear flow q(lbs/in or kips/in) at the connection between the members and indicate if the connection is adequate.

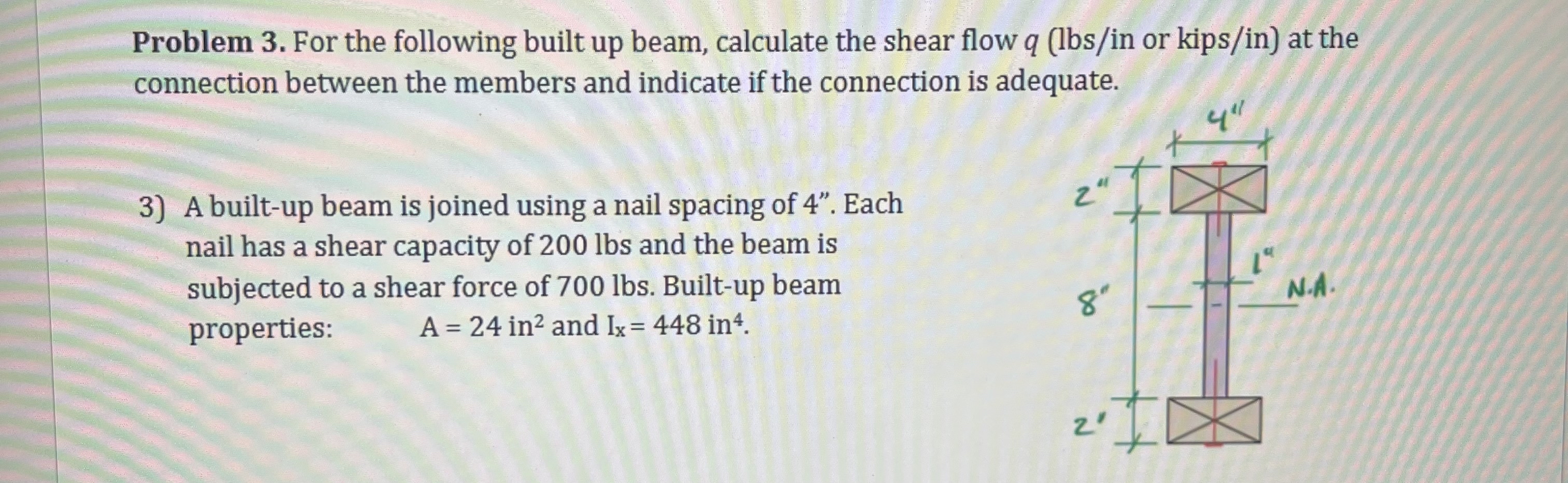

A built-up beam is joined using a nail spacing of 4". Each nail has a shear capacity of 200 lbs and the beam is subjected to a shear force of 700 lbs . Built-up beam properties: ,A=24in2 and Ix=448in4.
Problem 3 . For the following built up beam,

Step by Step Solution

There are 3 Steps involved in it
