Question: Problem 3 : For the steel beam and loading shown: a - Draw the shear and bending moment diagrams and specify the location and the

Problem3:

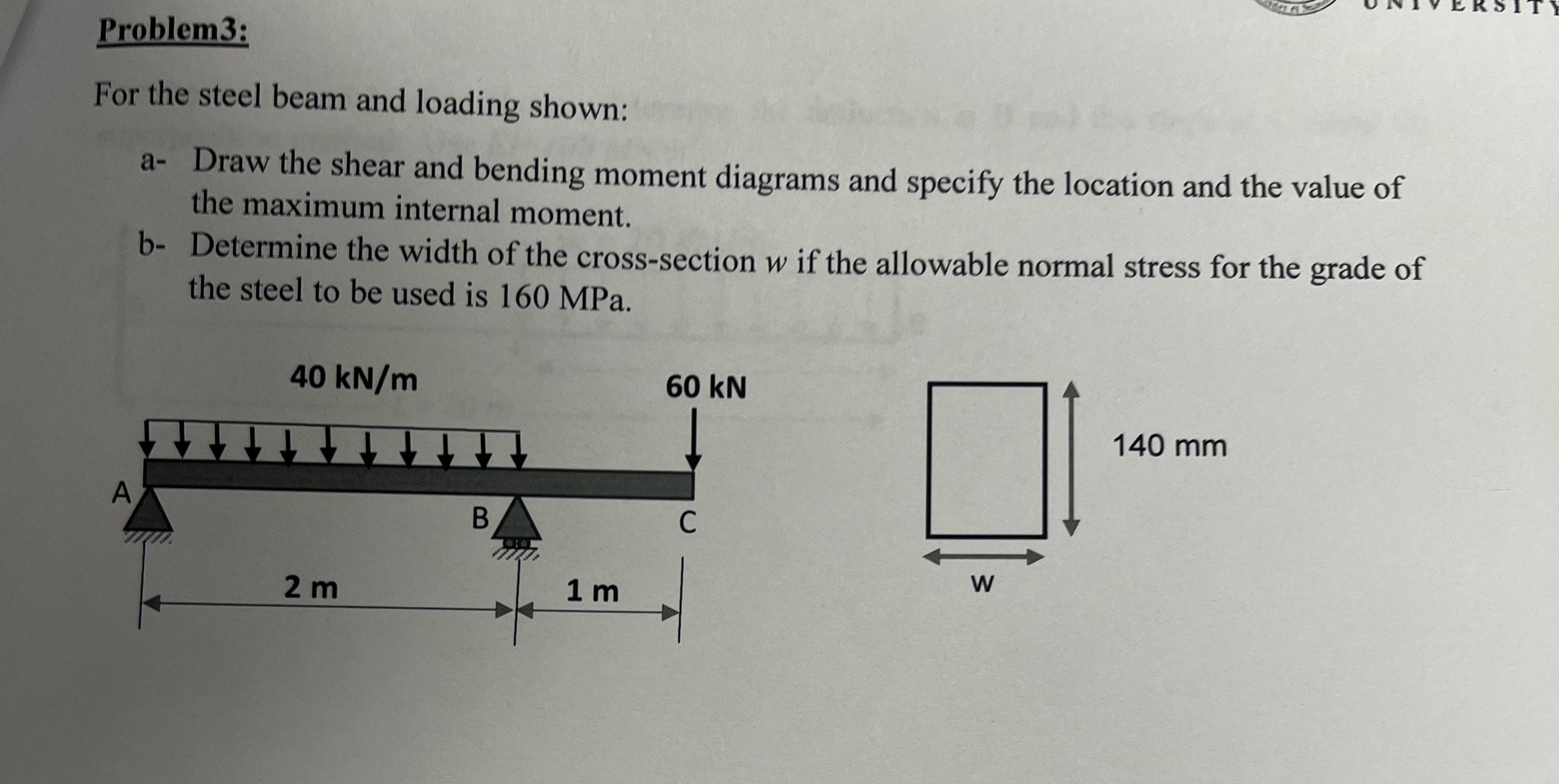

For the steel beam and loading shown:
a- Draw the shear and bending moment diagrams and specify the location and the value of the maximum internal moment.
b- Determine the width of the cross-section w if the allowable normal stress for the grade of the steel to be used is 160MPa.
Problem 3 : For the steel beam and loading shown:

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
