Question: Problem 3 . For the W 1 4 x 8 2 section shown: a ) Determine the First Moment of Outward Area ( Q

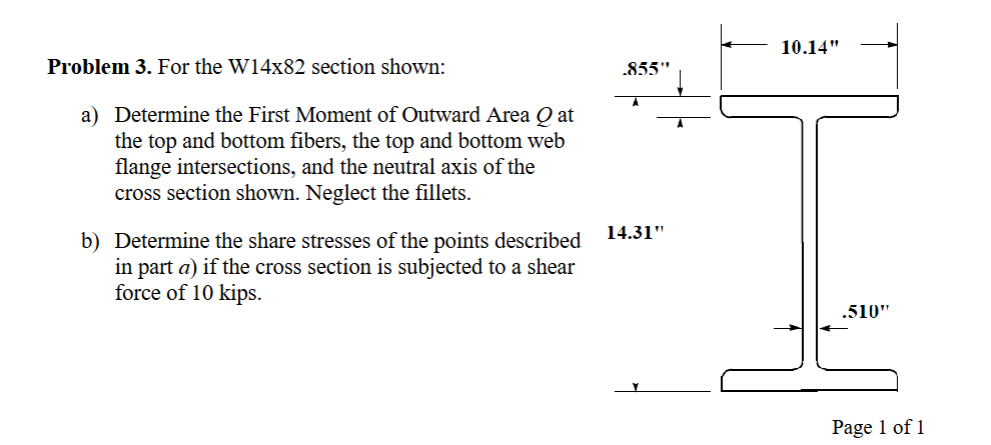

Problem 3. For the W14x82 section shown:
a) Determine the First Moment of Outward Area \( Q \) at the top and bottom fibers, the top and bottom web flange intersections, and the neutral axis of the cross section shown. Neglect the fillets.
b) Determine the share stresses of the points described in part \( a \)) if the cross section is subjected to a shear force of 10 kips.
Page 1 of 1
Problem 3 . For the W 1 4 x 8 2 section shown: a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
