Question: Problem 3: Fragmentation Network 2 Network 1 IP Netflix MTU-2000 MTU-700 Client R1 R2 Network 4 IP: Ne MTU-44 Networks IP:N MTU-800 Server IP: 5

 Problem 3: Fragmentation Network 2 Network 1 IP Netflix MTU-2000 MTU-700

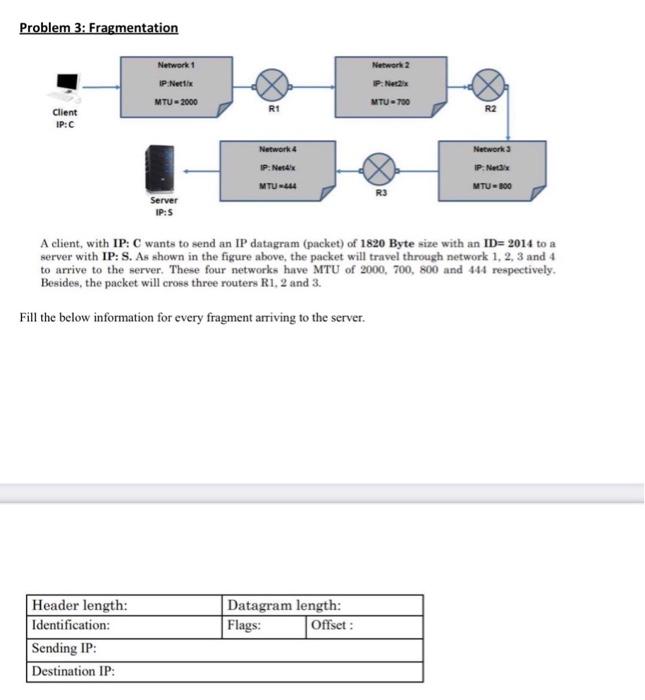

Problem 3: Fragmentation Network 2 Network 1 IP Netflix MTU-2000 MTU-700 Client R1 R2 Network 4 IP: Ne MTU-44 Networks IP:N MTU-800 Server IP: 5 A client, with IP: C wants to send an IP datagram (packet) of 1820 Byte size with an ID=2014 to a server with IP: S. As shown in the figure above, the packet will travel through network 1, 2, 3 and 4 to arrive to the server. These four networks have MTU of 2000, 700, 800 and 444 respectively. Besides, the packet will cross three routers R1, 2 and 3. Fill the below information for every fragment arriving to the server. Datagram length: Flags: Offset: Header length: Identification: Sending IP: Destination IP
