Question: Problem 3 If R A = R B = R 1 = R 2 = 1 KOhm, C 1 = C 2 = 1 0

Problem 3

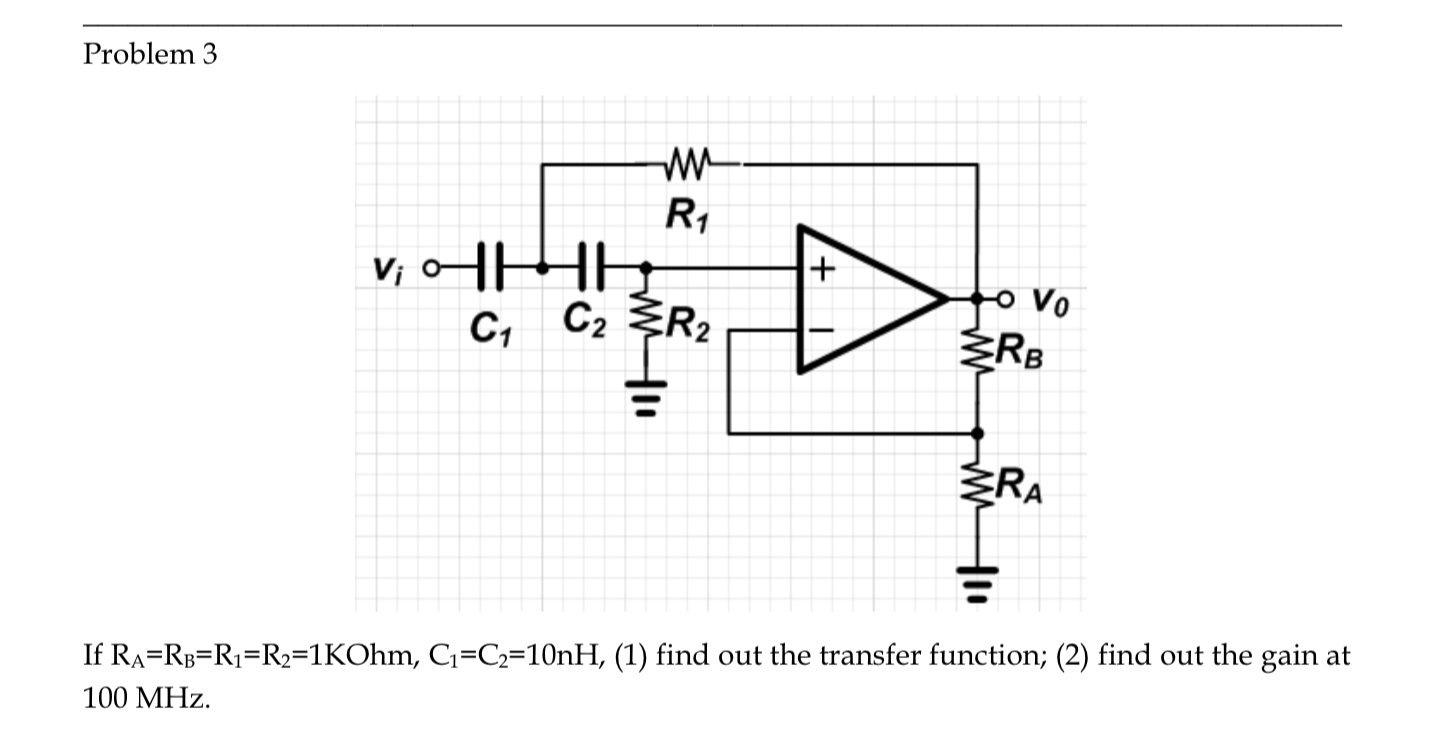

If RA=RB=R1=R2=1KOhm,C1=C2=10nH,(1) find out the transfer function; (2) find out the gain at 100 MHz .
Problem 3 If R A = R B = R 1 = R 2 = 1 KOhm, C 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
