Question: Problem 3 . Knowing that = 3 0 , determine the resultant of the three forces shown. Problem 4 . Determine ( a ) the

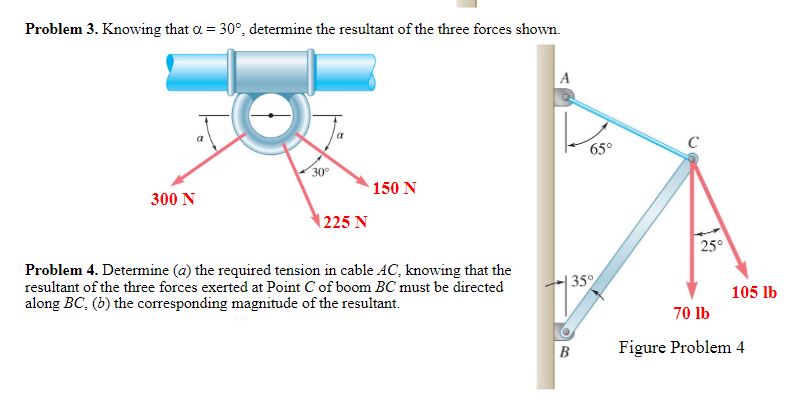

Problem 3. Knowing that =30, determine the resultant of the three forces shown.
Problem 4. Determine (a) the required tension in cable AC, knowing that the
resultant of the three forces exerted at Point C of boom BC must be directed
along BC,(b) the corresponding magnitude of the resultant.
Problem 3 . Knowing that = 3 0 , determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the block of Problems 2.35 and 2.36, determine (a) The required value of of the resultant of the three forces shown is to be parallel to the incline, (b) The corresponding magnitude of the...

Q:

For the block of Problem 2.37, determine (a) The required value of α if the resultant of the three forces shown is to be parallel to the incline, (b) The corresponding magnitude of the...

Q:

The following problems were taken from Onouye, Statics and Strength of Materials... Fourth Edition. Solve these problems, SHOWING ALL WORK. CIRCLE YOUR ANSWERS TO MAKE THEM EASY TO FIND. Scan your...

Q:

1. If the magnitude of the resultant force is to be 9 kN directed along the positive x axis, determine the magnitude of the force T (in kN) acting on the eyebolt. T X 450 8 kNCalculate the tension T...

Q:

BON - 5 cm TON : 7 cm 10ON , 10 cm BON - 8cm 6 10 rim 7 CM 4.50 Som 180 270 Fix = FiGos Q, = 7 Cos 45 - 4.94 N 5 Fry = Fsino 7 ( Sin15 = 4.9 ~5 Fax = F 3 Cos 0 Fix = FL COS = 10 Cos& 2 2.5 (27) 10...
