Question: Problem 3 [ Not Required ] : Determine the force in each member of the truss. State if the members are in tension or compression.

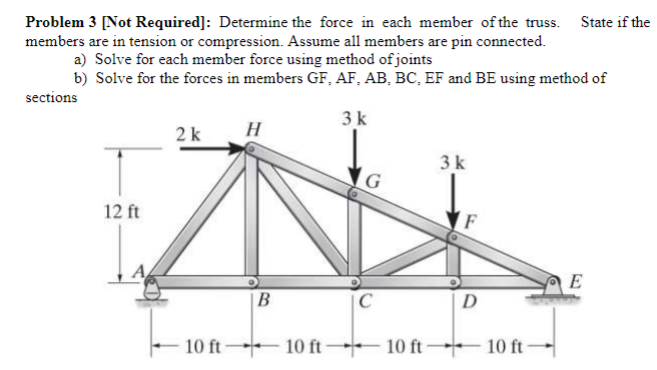

Problem 3[Not Required]: Determine the force in each member of the truss. State if the members are in tension or compression. Assume all members are pin connected.
a) Solve for each member force using method of joints
b) Solve for the forces in members GF, AF, AB, BC, EF and BE using method of sections
Problem 3 [ Not Required ] : Determine the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
