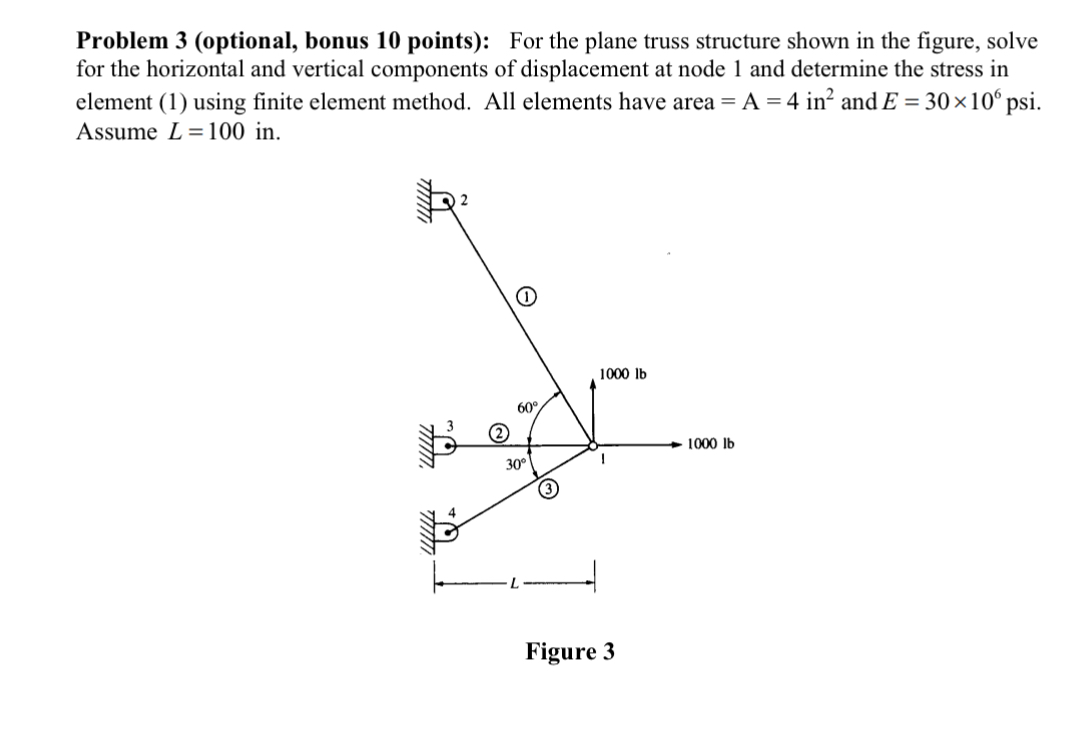

Problem $3($optional$,$ bonus $10$ points$)$: For the plane truss structure shown in the figure, solve

for the horizontal and vertical components of displacement at node $1$ and determine the stress in

element $(1)$ using finite element method. All elements have area $=A=4i{n}^2$ and $E=30{10}^6.$

Assume $L=100$ in$.$
