Question: Problem 3 : ( Points ) Use the conjugate beam method to determine the slope at point A of the beam given below. The conjugate

Problem

3

(

Points

)

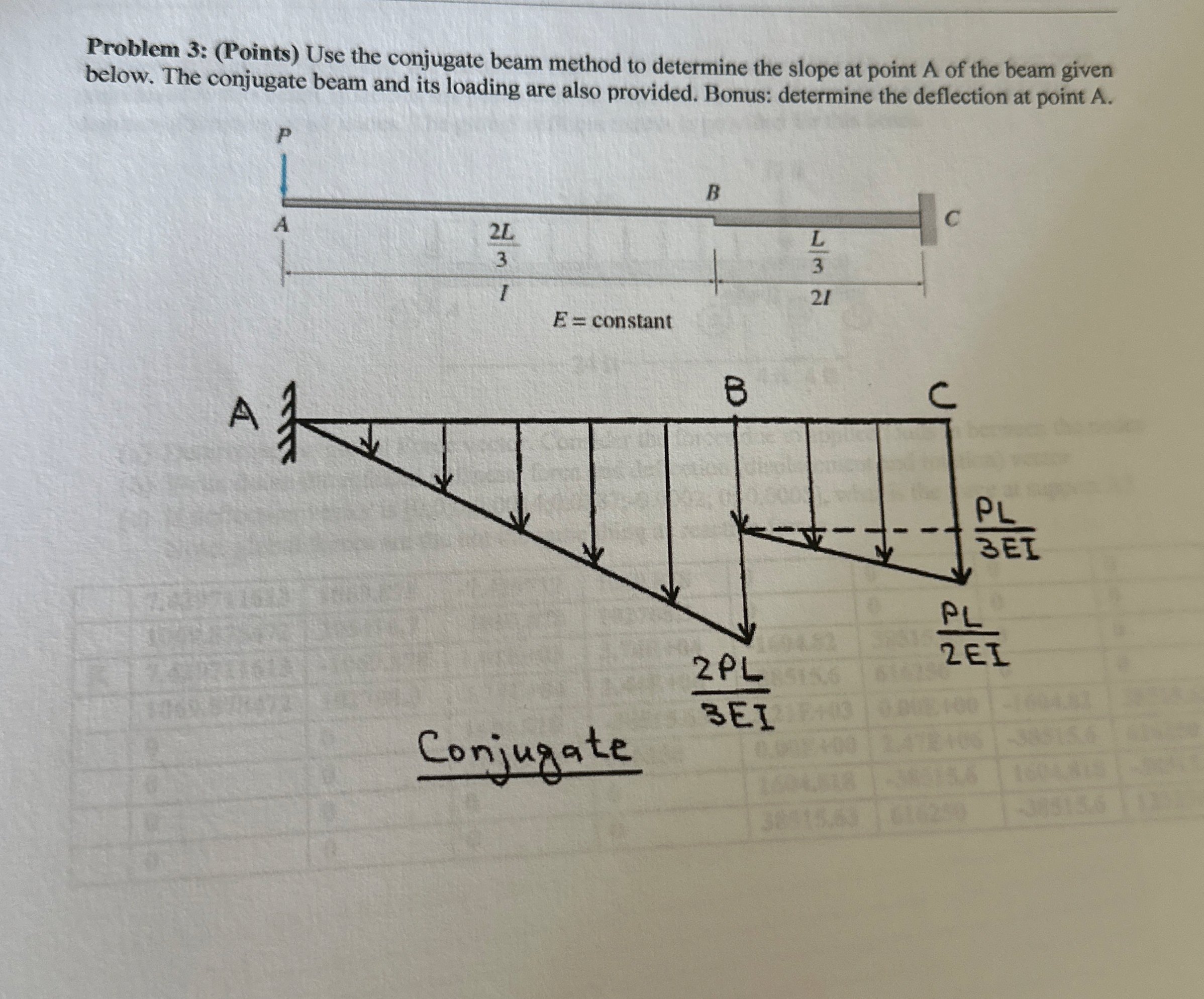

Use the conjugate beam method to determine the slope at point A of the beam given below. The conjugate beam and its loading are also provided. Bonus: determine the deflection at point A

.
