Question: Problem 3 ( Pro 2 . 2 0 Textbook modified ) : Determine the moment of the 1 , 0 0 0 # force applied

Problem 3(Pro 2.20 Textbook modified):

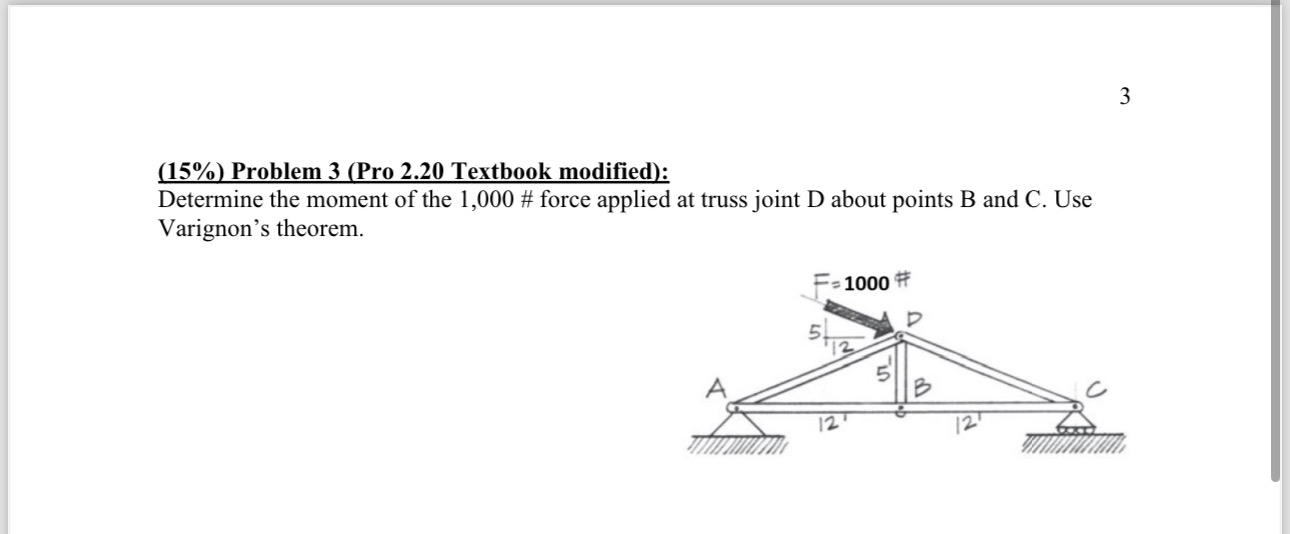

Determine the moment of the 1,000 # force applied at truss joint D about points B and C. Use Varignon's theorem
Problem 3 ( Pro 2 . 2 0 Textbook modified ) :

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
