Question: Problem 3 - Resultant Forces Two forces are applied to the construction bracket as shown. Determine the angle which makes the resultant of the two

Problem 3- Resultant Forces

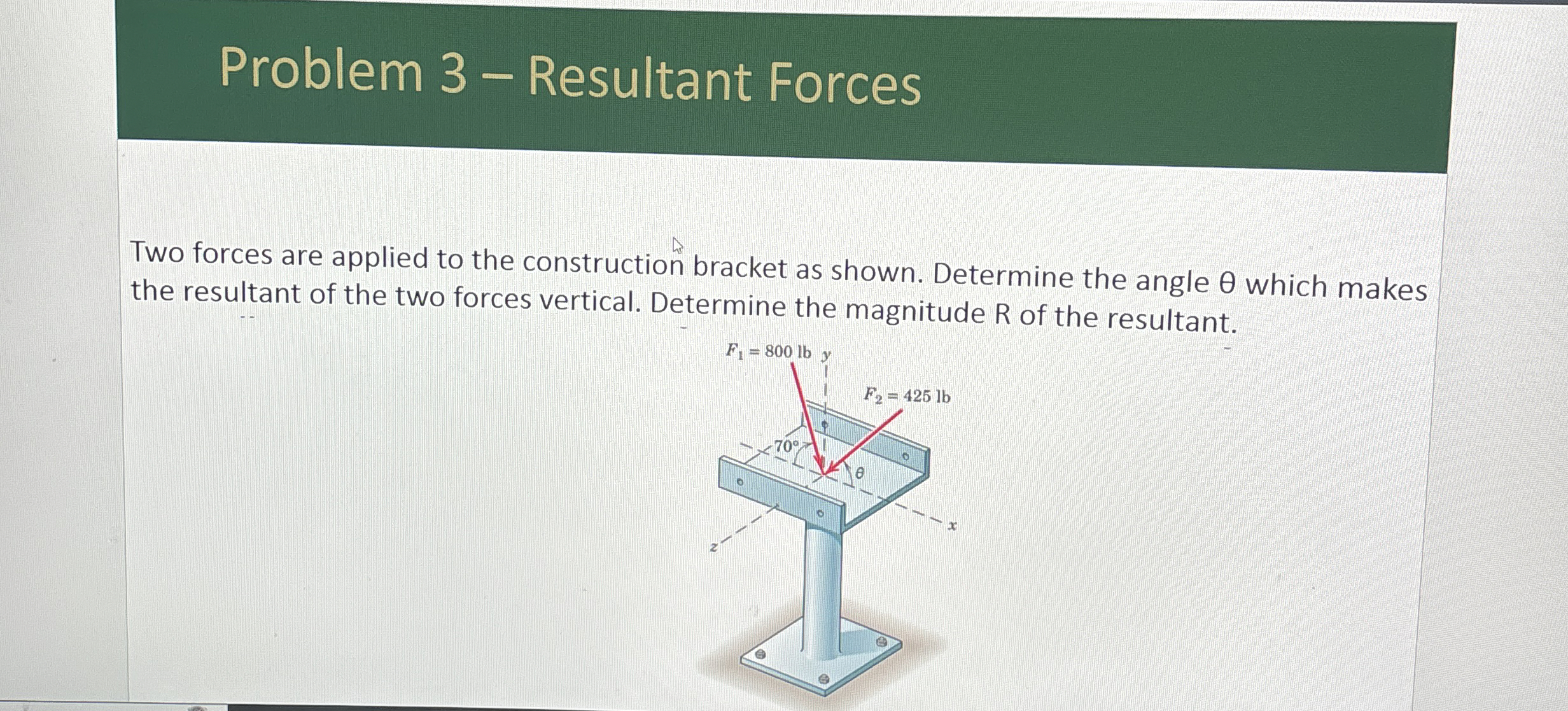

Two forces are applied to the construction bracket as shown. Determine the angle which makes the resultant of the two forces vertical. Determine the magnitude R of the resultant.Problem 3- Resultant Forces
Two forces are applied to the construction bracket as shown. Determine the angle which makes the resultant of the two forces vertical. Determine the magnitude R of the resultant.
Problem 3 - Resultant Forces Two forces are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
