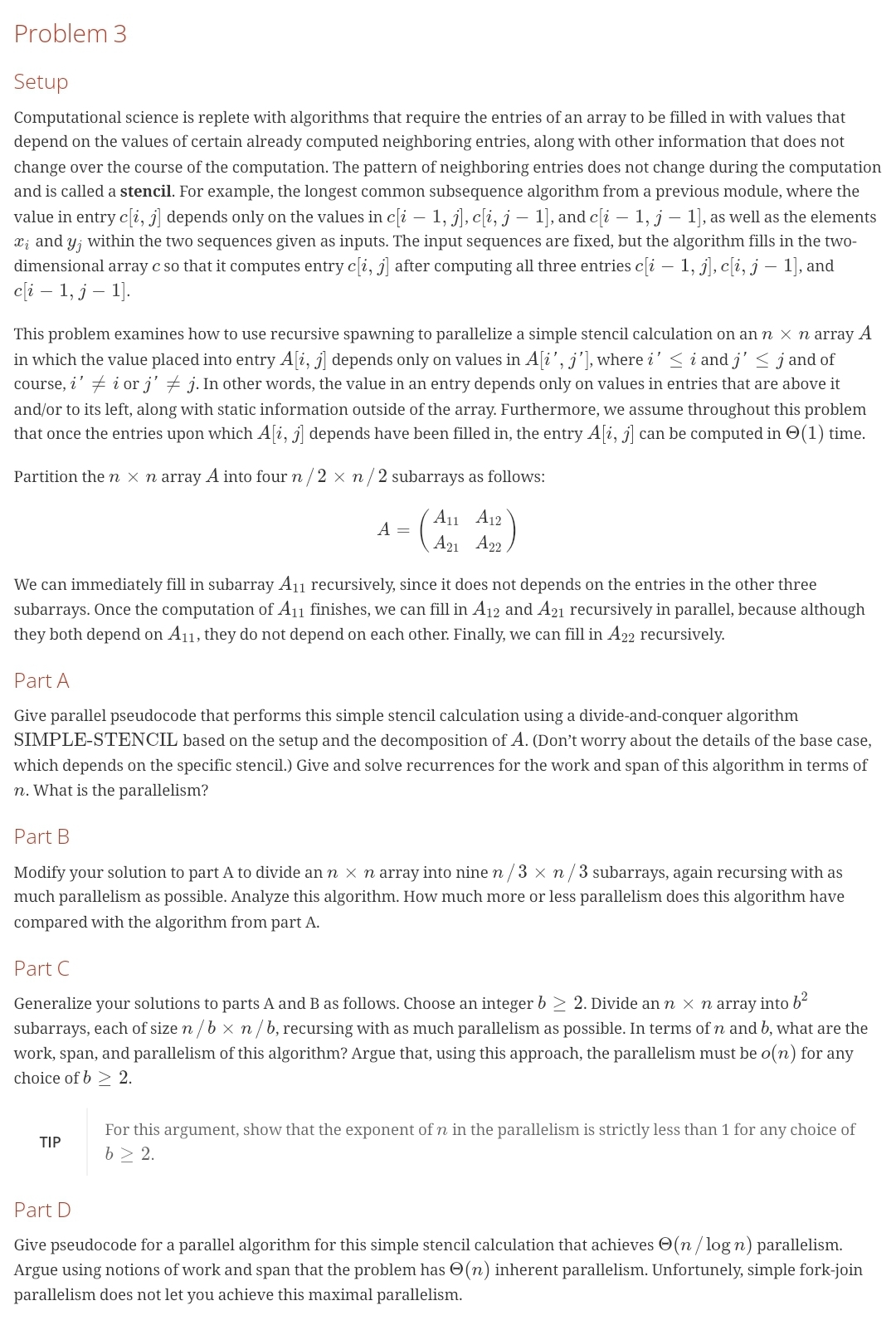

Problem $3$

Setup

Computational science is replete with algorithms that require the entries of an array to be filled in with values that

depend on the values of certain already computed neighboring entries, along with other information that does not

change over the course of the computation. The pattern of neighboring entries does not change during the computation

and is called a stencil. For example, the longest common subsequence algorithm from a previous module, where the

value in entry $c[i,j]$ depends only on the values in $c[i-1,j],c[i,j-1],$ and $c[i-1,j-1],$ as well as the elements

$x_i$ and $y_j$ within the two sequences given as inputs. The input sequences are fixed, but the algorithm fills in the two$-$

dimensional array $c$ so that it computes entry $c[i,j]$ after computing all three entries $c[i-1,j],c[i,j-1],$ and

$c[i-1,j-1]$

This problem examines how to use recursive spawning to parallelize a simple stencil calculation on an $nn$ array $A$

in which the value placed into entry $A[i,j]$ depends only on values in $A[i^{\text{'}},j^{\text{'}}],$ where $i^{\text{'}}$i and $j^{\text{'}}j$ and of

course, $i^{\text{'}}i$ or $j^{\text{'}}j.$ In other words, the value in an entry depends only on values in entries that are above it

and$/$or to its left, along with static information outside of the array. Furthermore, we assume throughout this problem

that once the entries upon which $A[i,j]$ depends have been filled in$,$ the entry $A[i,j]$ can be computed in $(1)$ time.

Partition the $nn$ array A into four $\frac{n}{2}\frac{n}{2}$ subarrays as follows:

$A=([A_{11},A_{12}],[A_{21},A_{22}])$

We can immediately fill in subarray $A_{11}$ recursively, since it does not depends on the entries in the other three

subarrays. Once the computation of $A_{11}$ finishes, we can fill in $A_{12}$ and $A_{21}$ recursively in parallel, because although

they both depend on $A_{11},$ they do not depend on each other. Finally, we can fill in $A_{22}$ recursively.

Part A

Give parallel pseudocode that performs this simple stencil calculation using a divide$-$and$-$conquer algorithm

SIMPLE$-$STENCIL based on the setup and the decomposition of $A.($Don$\text{'}$t worry about the details of the base case,

which depends on the specific stencil.$)$ Give and solve recurrences for the work and span of this algorithm in terms of

$n.$ What is the parallelism?

Part B

Modify your solution to part A to divide an $nn$ array into nine $\frac{n}{3}\frac{n}{3}$ subarrays, again recursing with as

much parallelism as possible. Analyze this algorithm. How much more or less parallelism does this algorithm have

compared with the algorithm from part A$.$

Part C

Generalize your solutions to parts A and B as follows. Choose an integer $b2.$ Divide an $nn$ array into $b^2$

subarrays, each of size $\frac{n}{b}\frac{n}{b},$ recursing with as much parallelism as possible. In terms of $n$ and $b,$ what are the

work, span, and parallelism of this algorithm? Argue that, using this approach, the parallelism must be $o(n)$ for any

choice of $b2.$

TIP

For this argument, show that the exponent of $n$ in the parallelism is strictly less than $1$ for any choice of

$b2$

Part D

Give pseudocode for a parallel algorithm for this simple stencil calculation that achieves $(\frac{n}{logn})$ parallelism.

Argue using notions of work and span that the problem has $(n)$ inherent parallelism. Unfortunely, simple fork$-$join

parallelism does not let you achieve this maximal parallelism.
