Question: Problem 3 : Synchronous machine Consider a salient - pole synchronous machine having two identical stator windings a and b , and a field winding

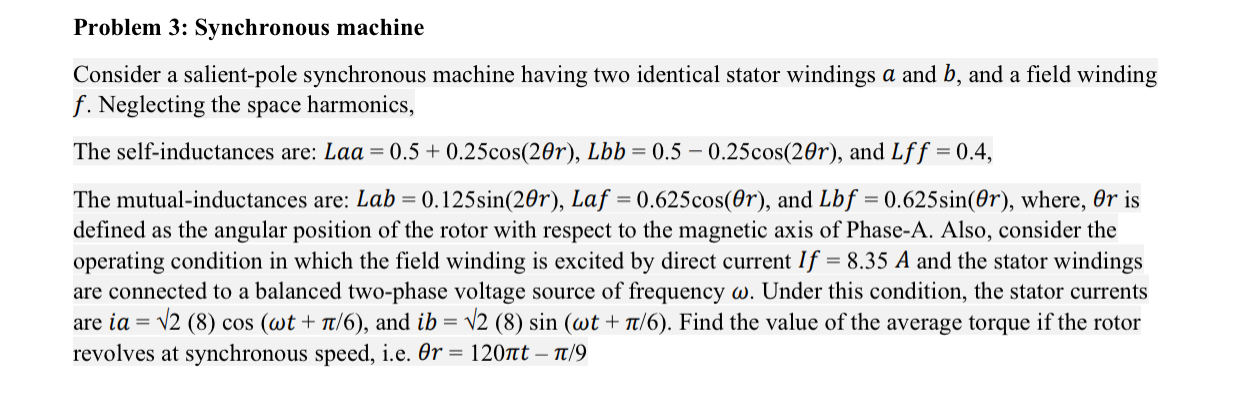

Problem 3: Synchronous machine
Consider a salient-pole synchronous machine having two identical stator windings a and b, and a field winding f. Neglecting the space harmonics,
The self-inductances are: Laa=0.5+0.25cos(2r),Lbb=0.5-0.25cos(2r), and Lff=0.4,
The mutual-inductances are: Lab=0.125sin(2r),Laf=0.625cos(r), and Lbf=0.625sin(r), where, r is defined as the angular position of the rotor with respect to the magnetic axis of Phase-A. Also, consider the operating condition in which the field winding is excited by direct current If=8.35A and the stator windings are connected to a balanced two-phase voltage source of frequency . Under this condition, the stator currents are ia=22(8)cos(t+6), and ib=22(8)sin(t+6). Find the value of the average torque if the rotor revolves at synchronous speed, i.e.r=120t-9
