Question: Problem 3 : The beam shown below is laterally braced only at the ends. The 3 0 kip load is a service live load. Use

Problem 3:

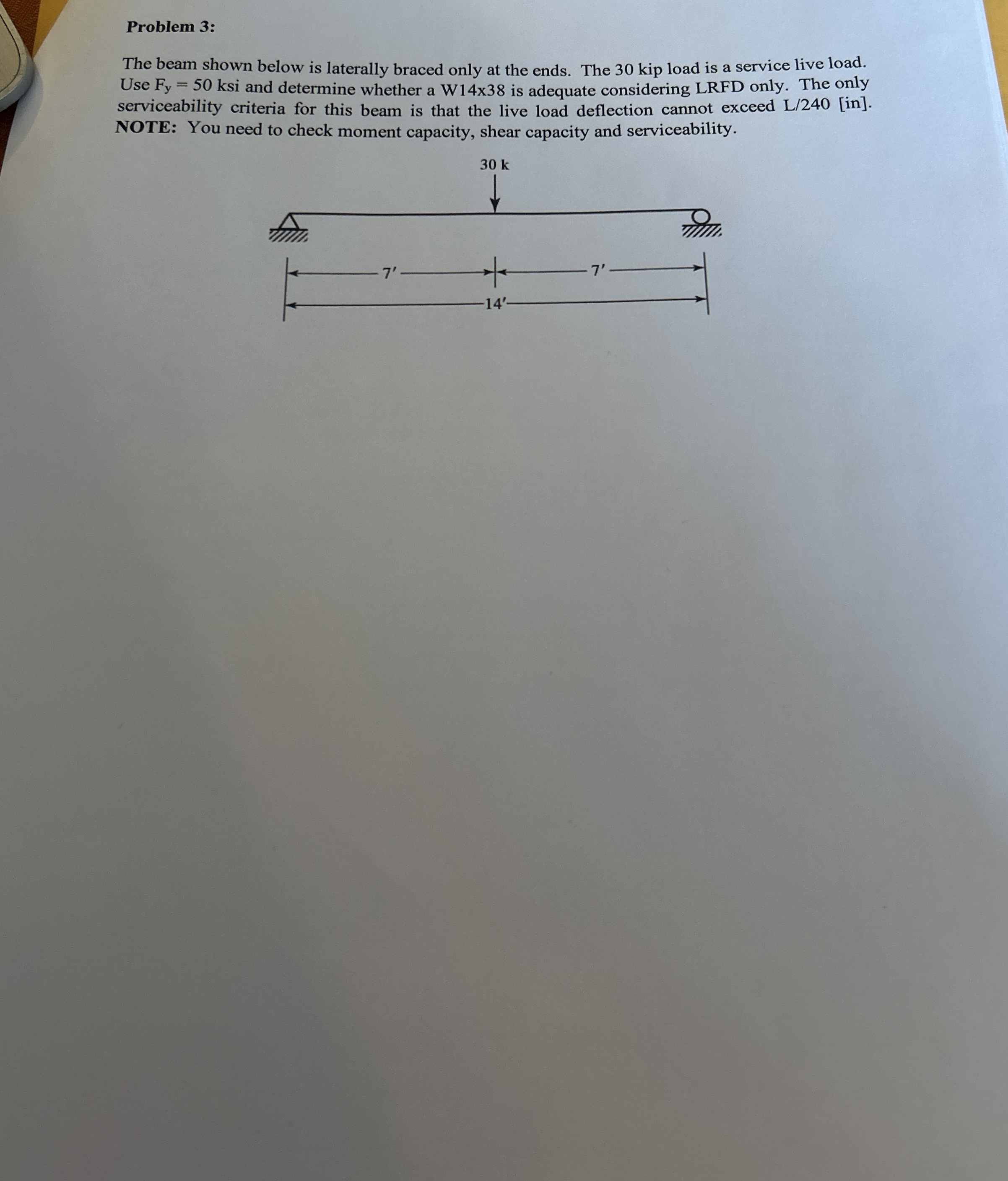

The beam shown below is laterally braced only at the ends. The 30 kip load is a service live load. Use Fy=50ksi and determine whether a W14x38 is adequate considering LRFD only. The only serviceability criteria for this beam is that the live load deflection cannot exceed L/240[in]. NOTE: You need to check moment capacity, shear capacity and serviceability.
Problem 3 : The beam shown below is laterally

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
