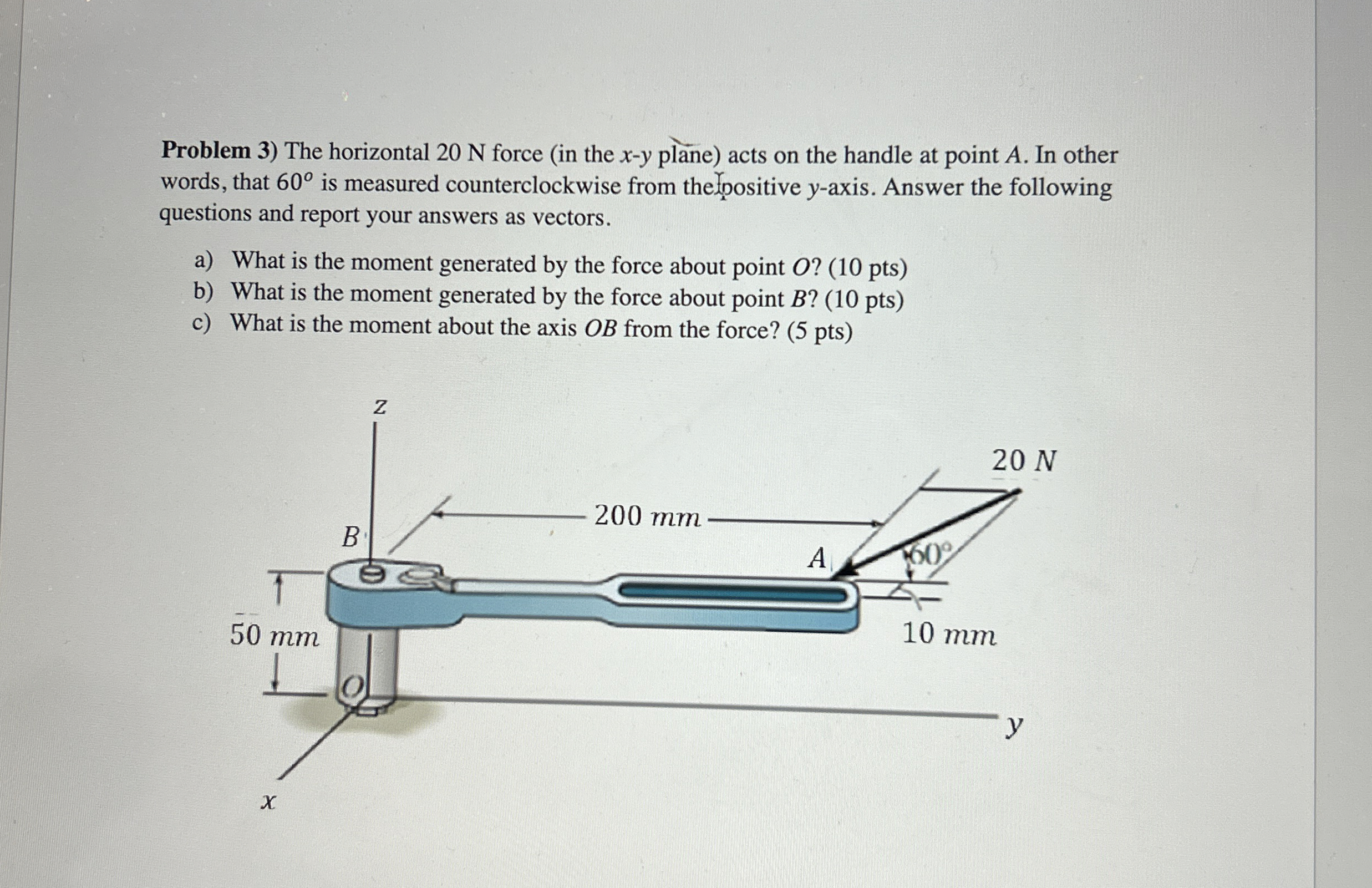

Question: Problem 3 ) The horizontal 2 0 N force ( in the x - y plane ) acts on the handle at point A .

Problem 3) The horizontal 20 N force (in the x-y plane) acts on the handle at point A. In other words, that 60 is measured counterclockwise from theypositive y-axis. Answer the following questions and report your answers as vectors.
a) What is the moment generated by the force about point O?(10 pts)
b) What is the moment generated by the force about point B?(10 pts)
c) What is the moment about the axis OB from the force? (5 pts)
Problem 3 ) The horizontal 2 0 N force ( in the x
