Question: Problem 3 : The T beam in the figure is cast monolithically with the slab, the slab thickness is 5 in . The beam clear

Problem 3:

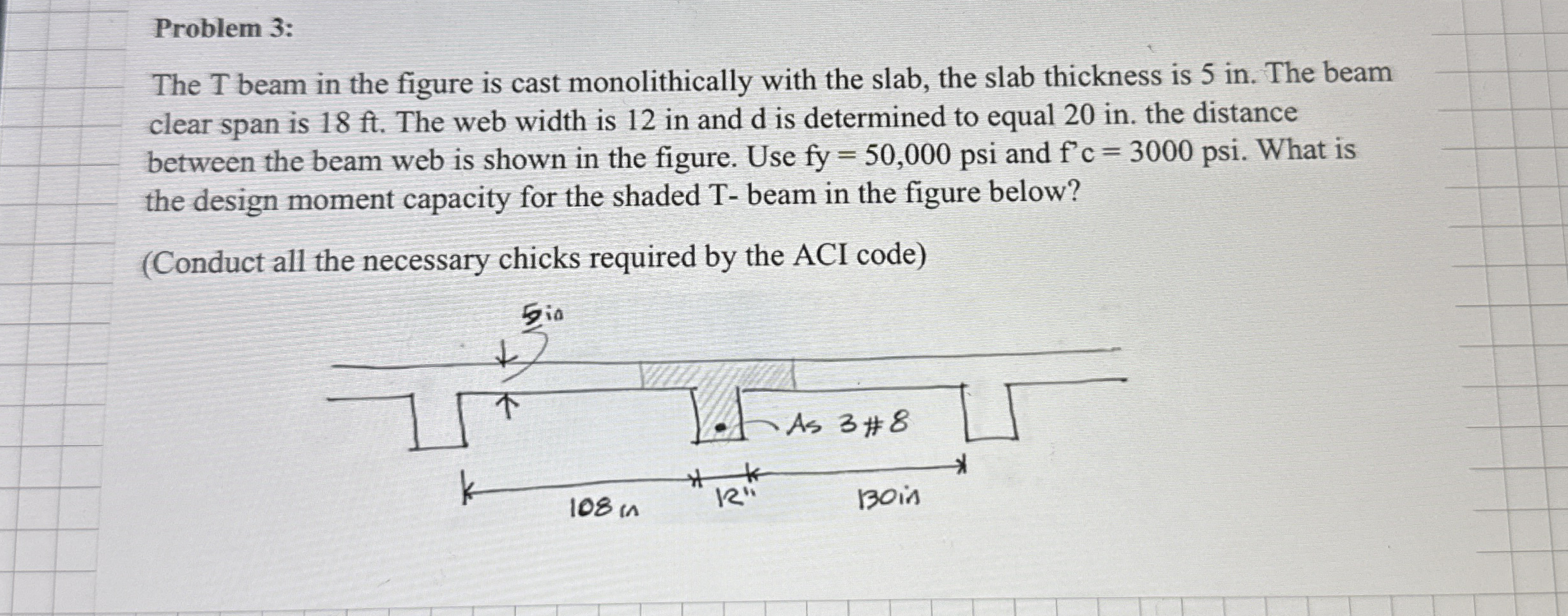

The T beam in the figure is cast monolithically with the slab, the slab thickness is 5 in. The beam clear span is 18 ft . The web width is 12 in and d is determined to equal 20 in . the distance between the beam web is shown in the figure. Use fy =50,000 and f'c=3000. What is the design moment capacity for the shaded T- beam in the figure below?
(Conduct all the necessary chicks required by the ACI code)
Problem 3 : The T beam in the figure is cast
