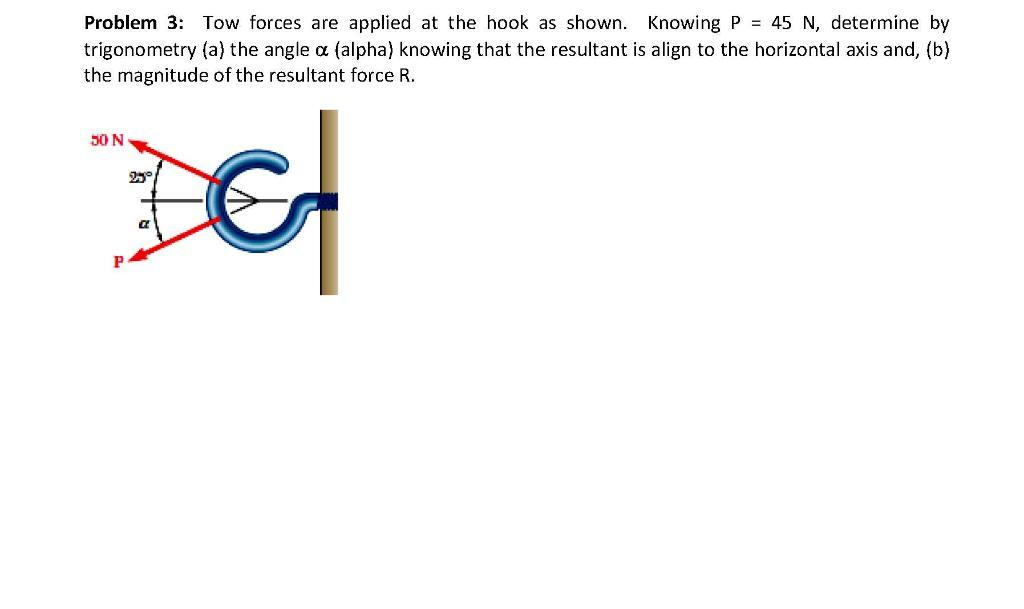

Question: Problem 3: Tow forces are applied at the hook as shown. Knowing P = 45 N, determine by trigonometry (a) the angle a (alpha)

Problem 3: Tow forces are applied at the hook as shown. Knowing

Problem 3: Tow forces are applied at the hook as shown. Knowing P = 45 N, determine by trigonometry (a) the angle a (alpha) knowing that the resultant is align to the horizontal axis and, (b) the magnitude of the resultant force R. 50 N

Step by Step Solution

★★★★★

3.40 Rating (150 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

50N Using the triangle rule and law ... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
