Question: Problem 3 : Use the virtual work method to determine the vertical displacement at the joint ( B ) of the given truss

Problem

3

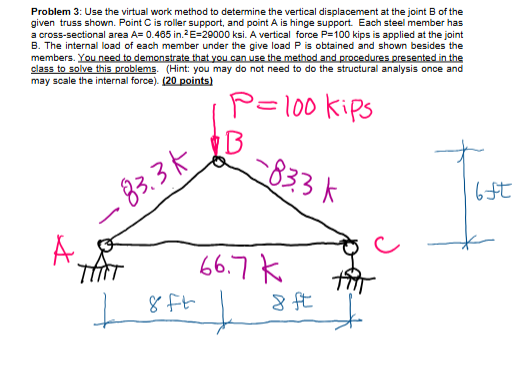

: Use the virtual work method to determine the vertical displacement at the joint

\ (

\)

of the given truss shown. Point C is roller support, and point A is hinge support. Each steel member has members. You need to dememestrate that vou cal use the method and procedures rorsented in the

Problem 3 : Use the virtual work method to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
