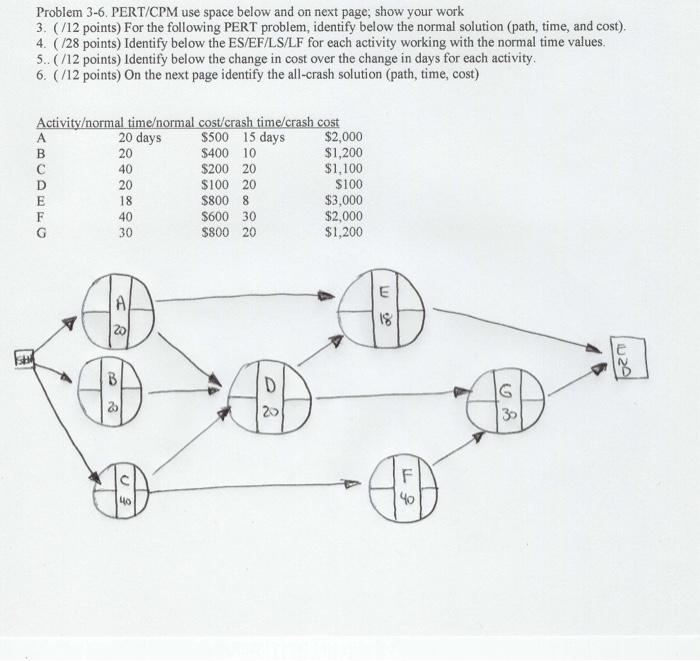

Problem 3-6. PERT/CPM use space below and on next page; show your work

3. (/12 points) For the following PERT problem, identify below the normal solution (path, time, and cost).

4. (/28 points) Identify below the ES/EF/LS/LF for each activity working with the normal time values.

5.. (/12 points) Identify below the change in cost over the change in days for each activity.

6. (/12 points) On the next page identify the all-crash solution (path, time, cost)

Problem 3-6. PERT/CPM use space below and on next page, show your work 3. (/12 points) For the following PERT problem, identify below the normal solution (path, time, and cost). 4. (728 points) Identify below the ES/EF/LS/LF for each activity working with the normal time values. 5..(/12 points) Identify below the change in cost over the change in days for each activity 6. (712 points) On the next page identify the all-crash solution (path, time, cost) Activityormal timeormal cost/crash time/crash cost A 20 days $500 15 days $2,000 B 20 $400 10 $1,200 40 $200 20 $1,100 D 20 $100 20 $100 E 18 $8008 $3,000 F 40 $600 30 $2,000 G 30 $800 20 $1,200 E 18 201 E B 2 D G 30 20 40
