Question: Problem 4 [ 1 5 points ] : Consider the 3 - balanced circuit shown below: Assume: V a = 1 2 7 V ?

Problem 4[15 points]:

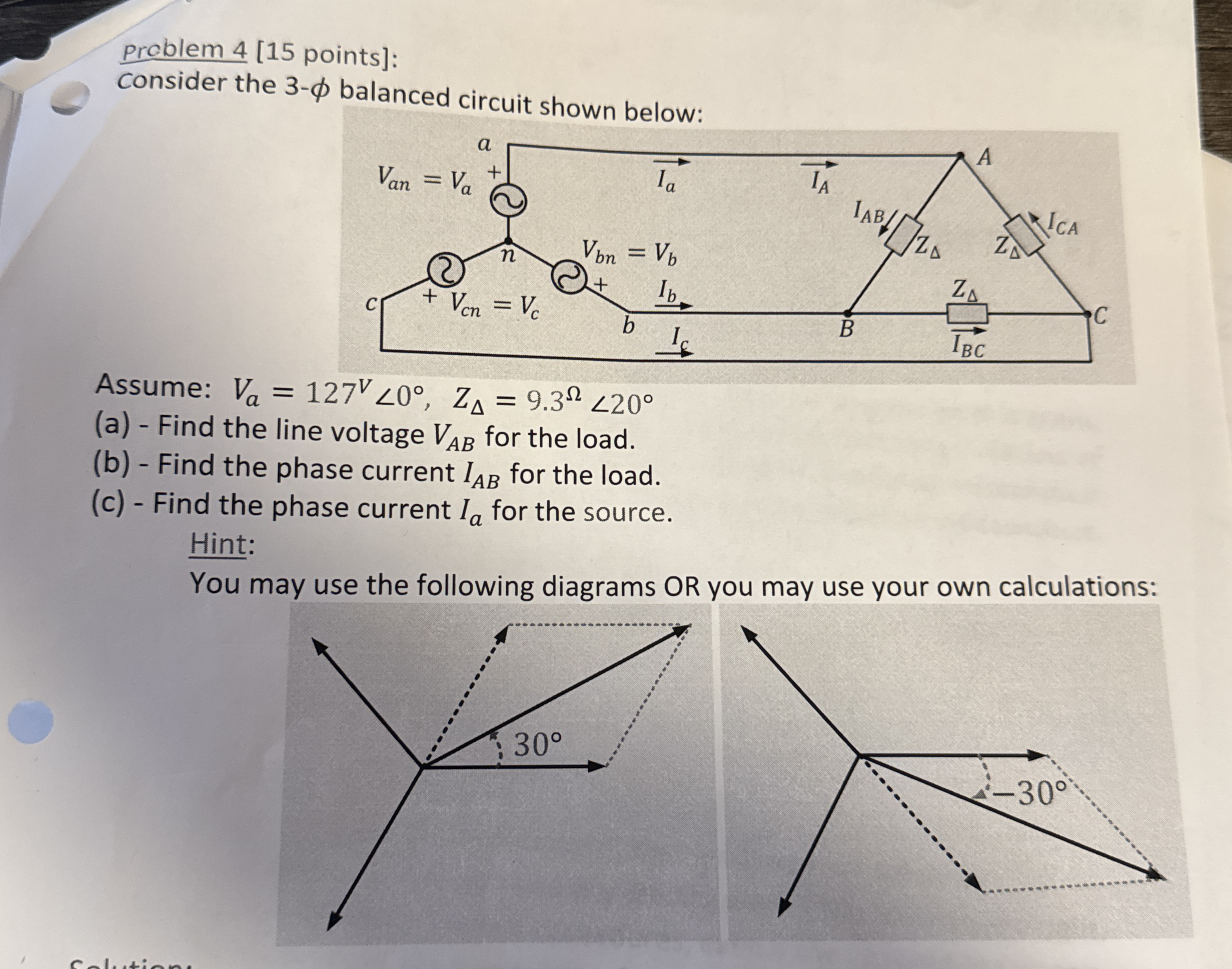

Consider the 3- balanced circuit shown below:
Assume: Va=127V?0,Z=9.3?20
(a)- Find the line voltage VAB for the load.
(b)- Find the phase current IAB for the load.
(c)- Find the phase current Ia for the source.
Hint:
You may use the following diagrams OR you may use your own calculations:
Problem 4 [ 1 5 points ] : Consider the 3 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
