Question: Problem 4 ( 1 5 pts . ) : In the circuit below the switch was closed for a long time before t = 0

Problem 4(15 pts.): In the circuit below the switch was closed for a long time before t=0 when it is OPENED.

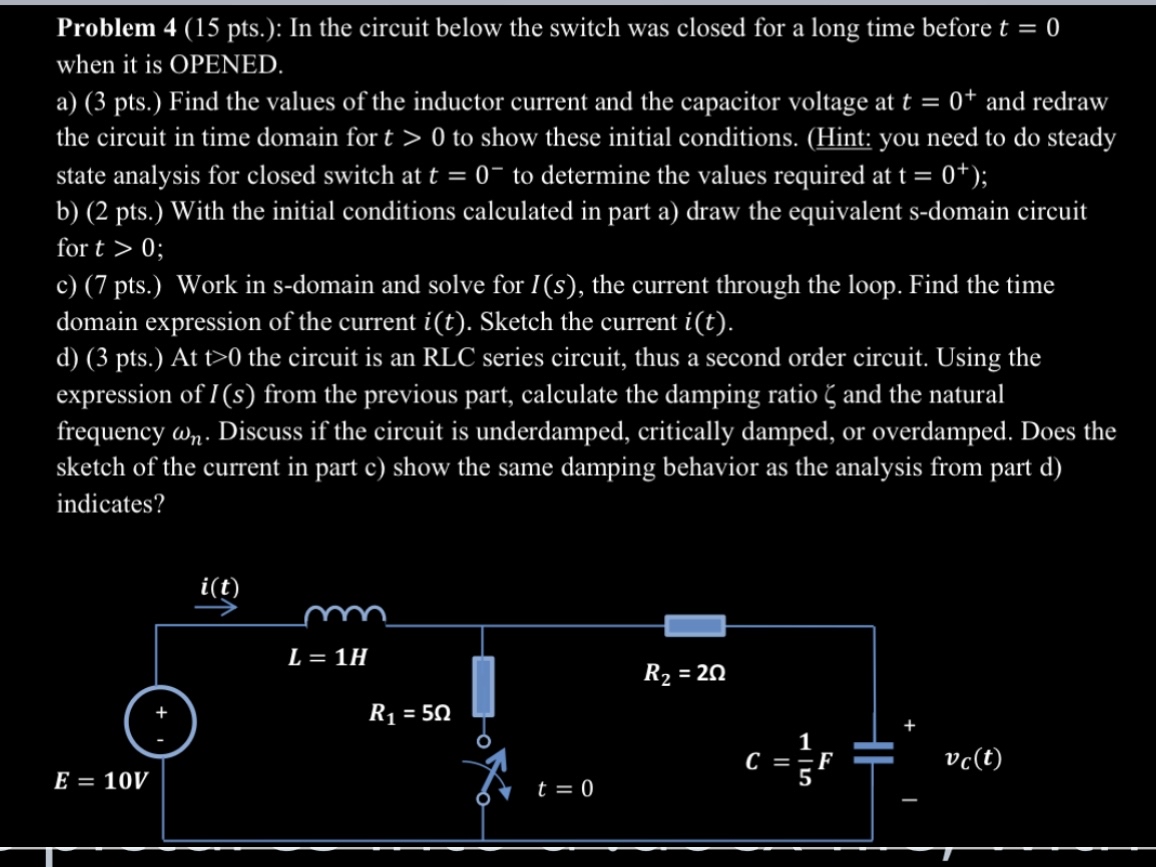

a)(3 pts.) Find the values of the inductor current and the capacitor voltage at t=0+and redraw the circuit in time domain for t>0 to show these initial conditions. (Hint: you need to do steady state analysis for closed switch at t=0-to determine the values required at t=0+
Problem 4 ( 1 5 pts . ) : In the circuit below
