Question: Problem #4: 12 pts.] Consider the following machine instructions. These instructions are to be implemented on the simple computer system built in Lab. Construct a

Problem #4: 12 pts.] Consider the following machine instructions. These instructions

are to be implemented on the simple computer system built in Lab.

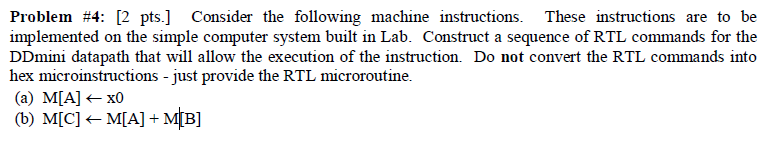

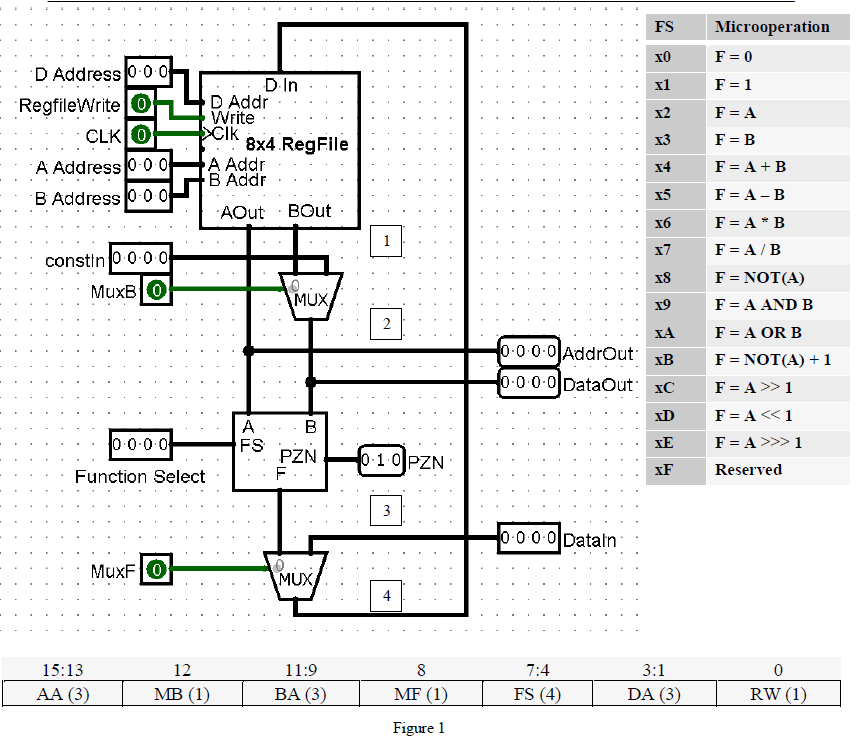

Problem #4: 12 pts.] Consider the following machine instructions. These instructions are to be implemented on the simple computer system built in Lab. Construct a sequence of RTL commands for the DDmini datapath that will allow the execution of the instruction. Do not convert the RTL commands into hex microinstructions just provide the RTL microroutine. (a) M 4x0 (b) MIC] MLA] MLB]
