Problem $420\%$ PLEASE USE THIS SHEET TO PROVIDE

ANSWERS

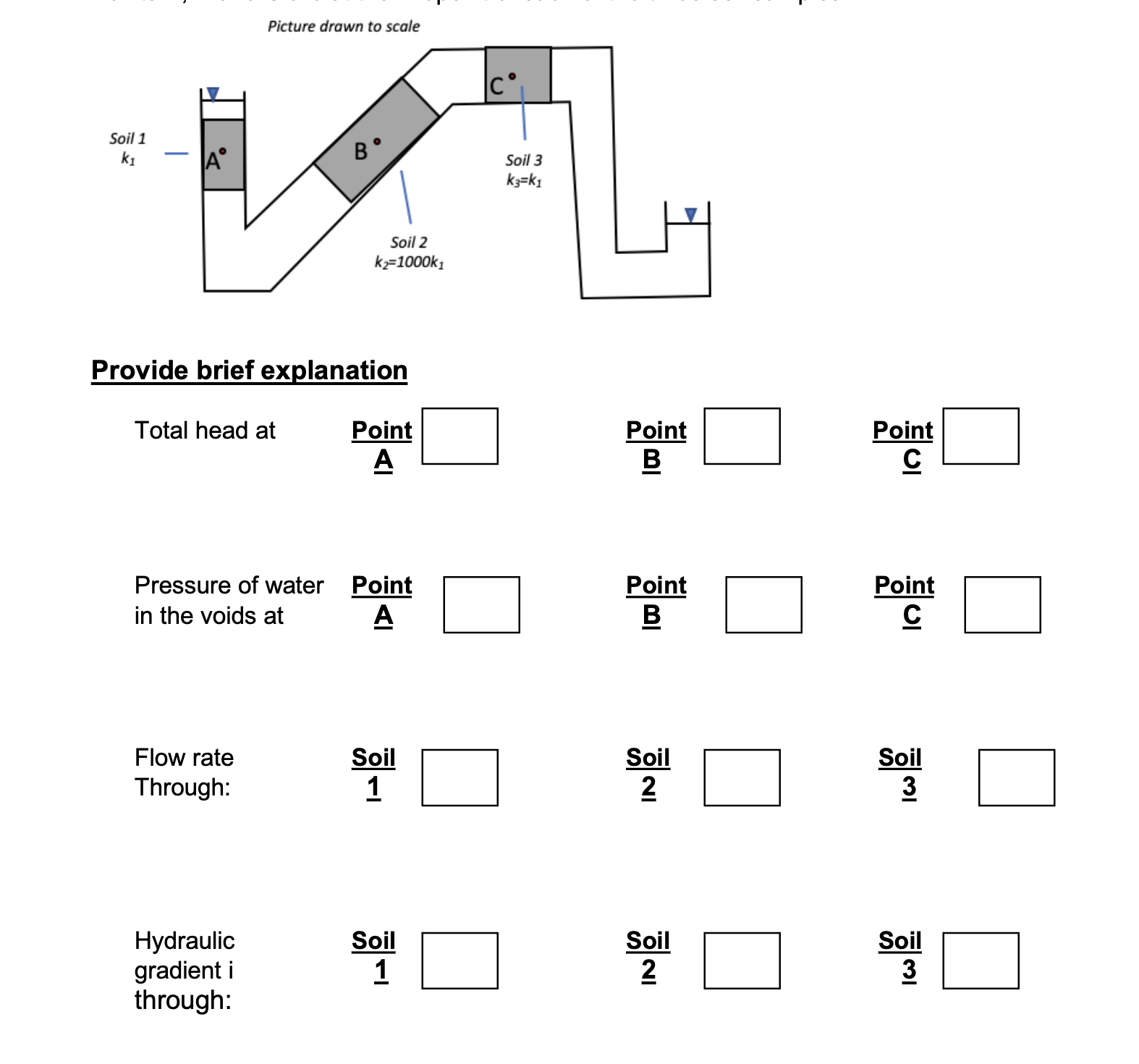

Consider the laboratory setup shown with flow occurring through three soil layers

with the values of hydraulic conductivity shown. The $$tube$$ has the same cross$-$

section where soils $2$ and $3$ are placed and a slightly smaller one in the portion

where soil $1$ is positioned.

Rank the following quantities $($using $1$ for the greatest$).$ Clearly identify ties, if

any.

Points A$,$ B and C are at the midpoint of each of the three soil samples.

Provide brief explanation

Total head at Point Point Point

A B C

Pressure of water Point Point Point

in the voids at A B C

Flow rate Soil Soil Soil

Through: $123$

Hydraulic Soil Soil Soil

gradient i $123$

through:Provide brief explanation

Total head at

Pressure of water

in the voids at

Point

Flow rate

Through:

$\frac{\text{S}\text{o}\text{i}\text{l}}{1}$

Hydraulic

gradient i

$\frac{\text{S}\text{o}\text{i}\text{l}}{1}$

Point

B

Point

B

$\frac{\text{S}\text{o}\text{i}\text{l}}{2}$

$\frac{\text{S}\text{o}\text{i}\text{l}}{2}$

Point

Point

Soil
