Question: Problem 4 : 2 0 points The L - shaped frame is made from two segments, each of length L and flexural stiffness EI .

Problem 4: 20 points

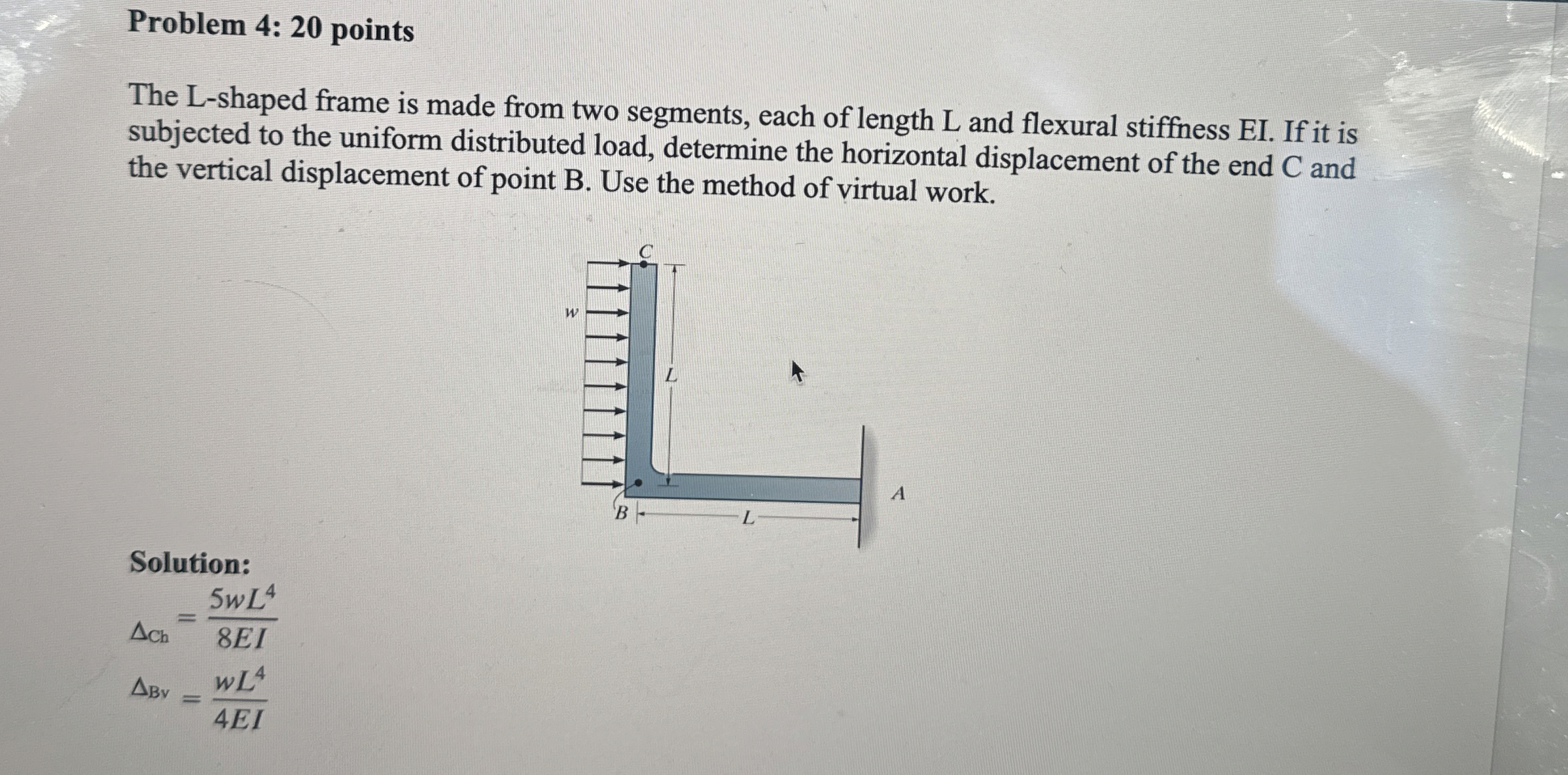

The L-shaped frame is made from two segments, each of length L and flexural stiffness EI. If it is subjected to the uniform distributed load, determine the horizontal displacement of the end C and the vertical displacement of point B. Use the method of virtual work.
Solution:
Ch=5wL48EI
Bv=wL44EI
Problem 4 : 2 0 points The L - shaped frame is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
