Question: Problem 4 . 2 . Determine ( approximately ) the internal moments at joint F from FG , at joint E from E D ,

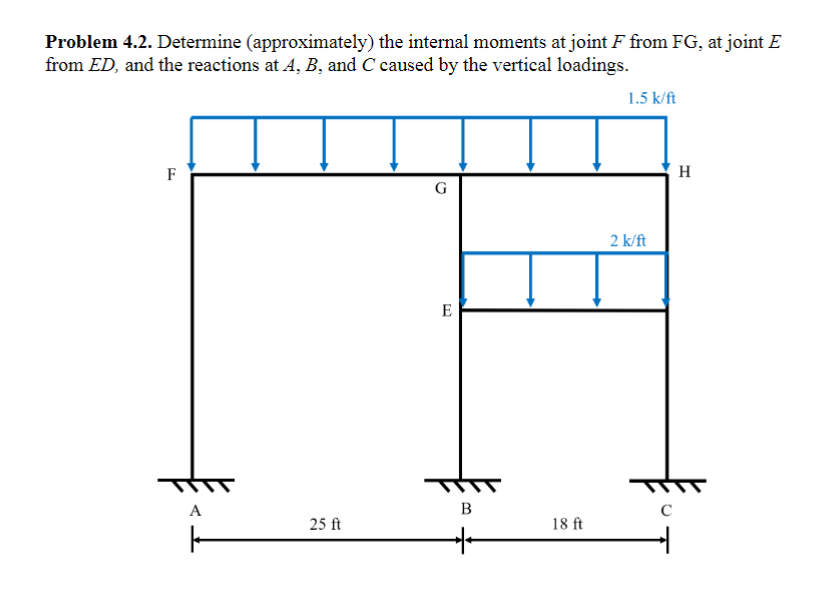

Problem 4.2. Determine (approximately) the internal moments at joint F from FG, at joint E
from ED, and the reactions at A,B, and C caused by the vertical loadings.
