Question: Problem [ 4 ] 2 points > We want to obtain Thevenin equivalent circuit for the given circuit at terminals a - b: Find V

Problem [4]2 points>

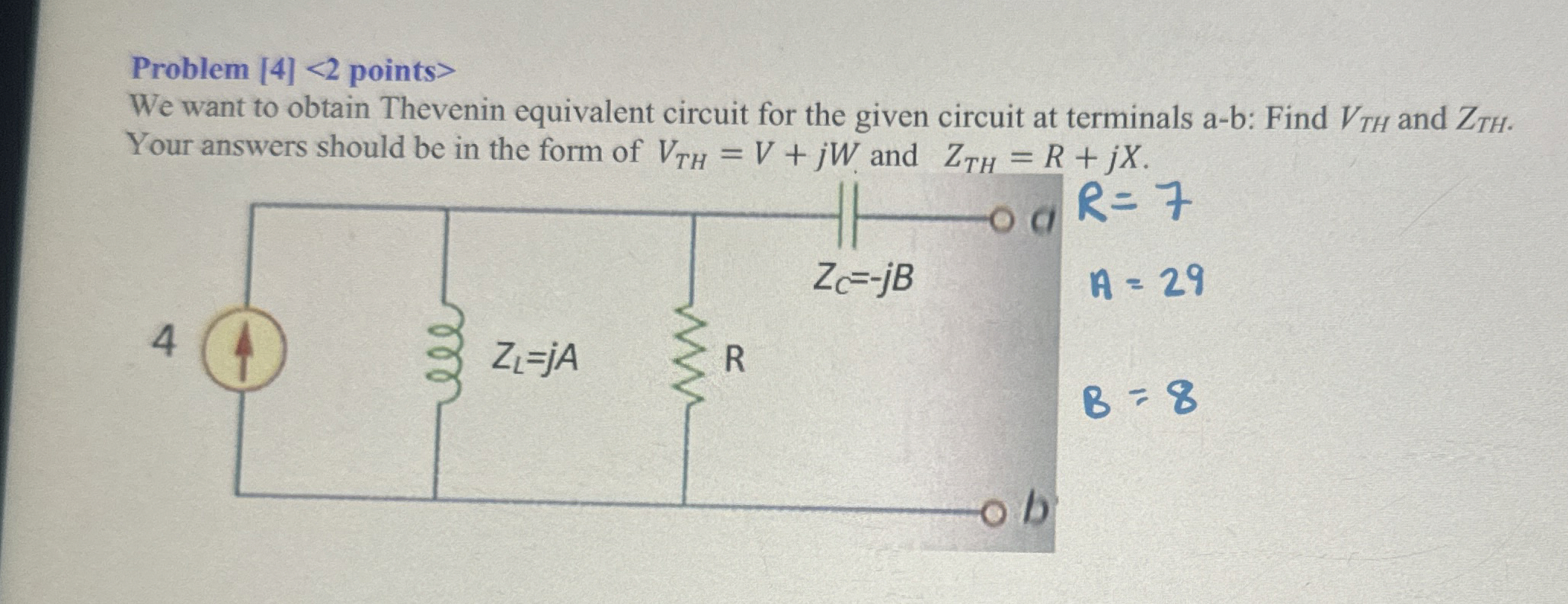

We want to obtain Thevenin equivalent circuit for the given circuit at terminals a-b: Find VTH and ZTH. Your answers should be in the form of VTH=V+jW and ZTH=R+jx.
Problem [ 4 ] < 2 points > We want to obtain

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
