Question: Problem 4 (25 Pts) a) Find the minimum sum-of-product expression (SOP) and the minimum product-of-sum expression (POS) for the function shown. (15 Pts) f=Iway.2(0,2,3,8,10,11,12,13) SOP

Problem 4 (25 Pts) a) Find the minimum sum-of-product expression (SOP)

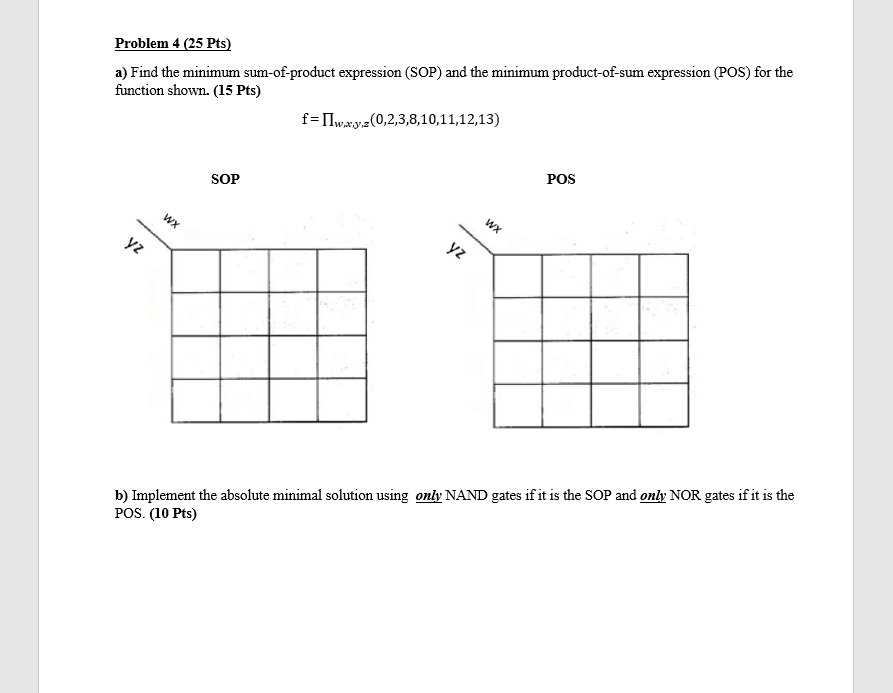

Problem 4 (25 Pts) a) Find the minimum sum-of-product expression (SOP) and the minimum product-of-sum expression (POS) for the function shown. (15 Pts) f=Iway.2(0,2,3,8,10,11,12,13) SOP POS WX WX yz yz b) Implement the absolute minimal solution using only NAND gates if it is the SOP and only NOR gates if it is the POS. (10 Pts)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
