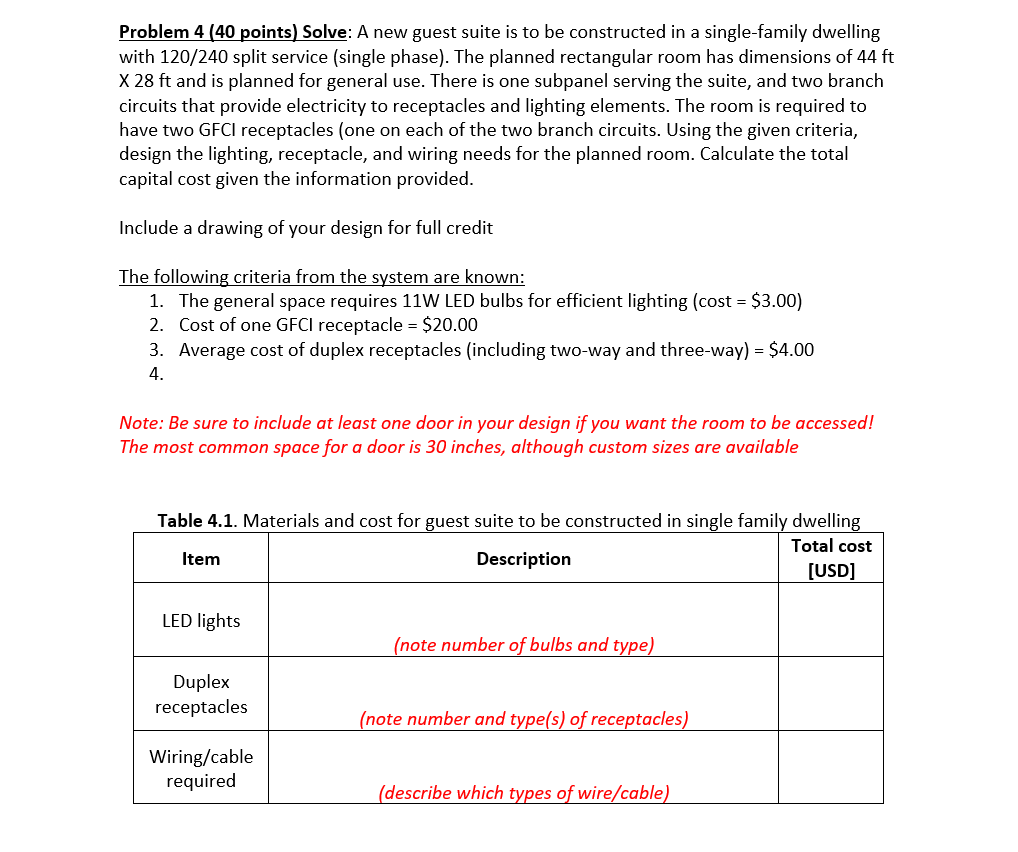

Problem $4(40$ points$)$ Solve: A new guest suite is to be constructed in a single$-$family dwelling with $120/240$ split service $($single phase$).$ The planned rectangular room has dimensions of $44$ ft X $28$ ft and is planned for general use. There is one subpanel serving the suite, and two branch circuits that provide electricity to receptacles and lighting elements. The room is required to have two GFCl receptacles $($one on each of the two branch circuits. Using the given criteria, design the lighting, receptacle, and wiring needs for the planned room. Calculate the total capital cost given the information provided.

Include a drawing of your design for full credit

The following criteria from the system are known:

$1.$ The general space requires $11$W LED bulbs for efficient lighting $(\backslash (\backslash$operatorname$\{$cost$\}=\backslash$$ $3\mathrm{.}00\backslash ))$

$2.$ Cost of one GFCI receptacle $\backslash (=\backslash$$ $20\mathrm{.}00\backslash )$

$3.$ Average cost of duplex receptacles $($including two$-$way and three$-$way$)\backslash (=\backslash$$ $4\mathrm{.}00\backslash )$

$4.$

Note: Be sure to include at least one door in your design if you want the room to be accessed! The most common space for a door is $30$ inches, although custom sizes are available

Table $4\mathrm{.}1.$ Materials and cost for guest suite to be constructed in single family dwelling
