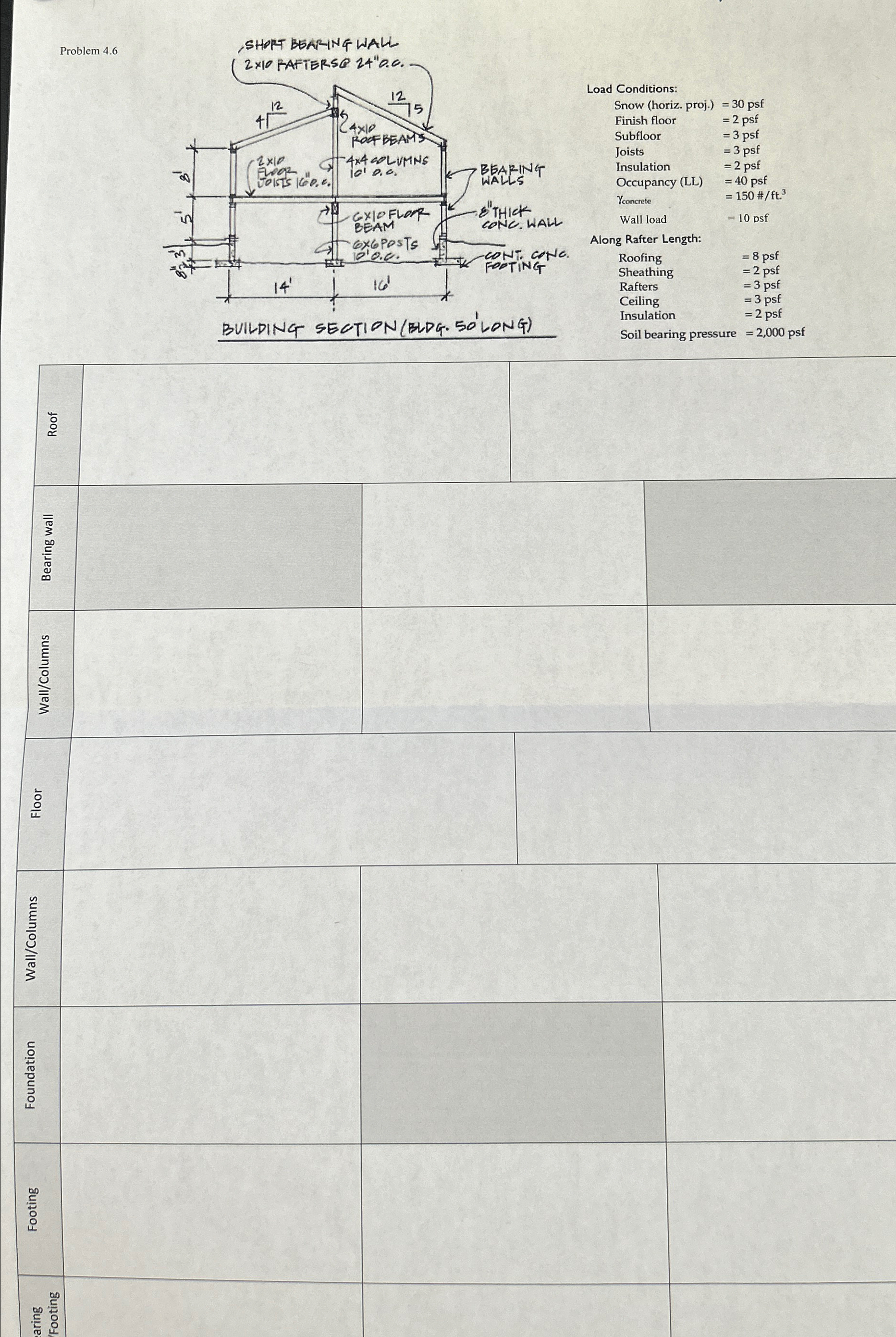

Problem $4\mathrm{.}6$

Solve for all concentrated loads and provide free body diagrams for each section

Load Conditions:

Snow $($horiz$.$ proj.$)=30$ psf

Finish floor $=2psf$

Subfloor $,3psf$

Joists $,=3$ psf

Insulation $,=2psf$

Occupancy $($LL$),=40$ psf

${}_{\text{c}\text{o}\text{n}\text{c}\text{r}\text{e}\text{t}\text{e}},=150\frac{\text{\#}}{f}{t}^3$

Wall load

$=10psf$

Along Rafter Length:

Roofing

$=8psf$

Sheathing $,=2psf$

Rafters

$=3psf$

Ceiling

$=3$ psf

Insulation $,2psf$

Soil bearing pressure $=2,000$ psf
