Question: Problem 4 : A distillation column receives a feed that is 42 mole % Benzene and 58 mole % Toluene. The feed is 25% saturated

Problem 4 : A distillation column receives a feed that is $42 mole \% Benzene and 58 mole \% Toluene. The feed is$

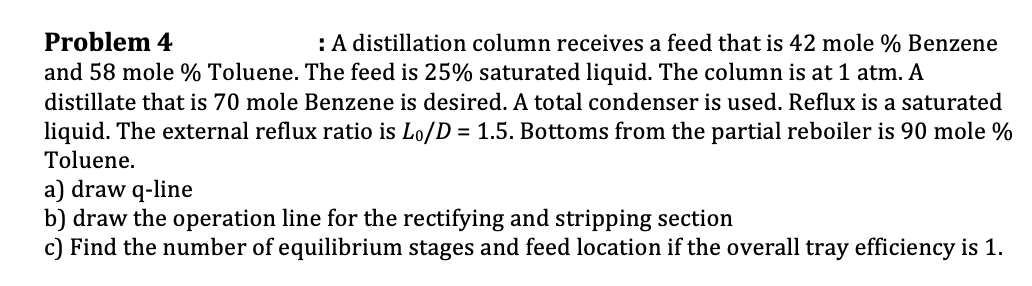

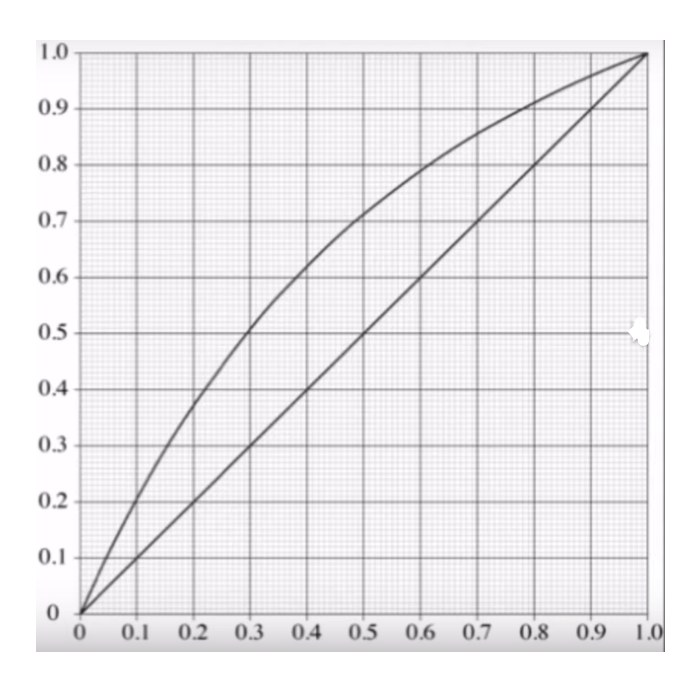

Problem 4 : A distillation column receives a feed that is 42 mole \% Benzene and 58 mole \% Toluene. The feed is 25% saturated liquid. The column is at 1atm. A distillate that is 70 mole Benzene is desired. A total condenser is used. Reflux is a saturated liquid. The external reflux ratio is L0/D=1.5. Bottoms from the partial reboiler is 90 mole \% Toluene. a) draw q-line b) draw the operation line for the rectifying and stripping section c) Find the number of equilibrium stages and feed location if the overall tray efficiency is 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Problem 3 : A distillation column receives a feed that is 40 mole \% i butane and 60 mole \% i-pentane. Feed is saturated liquid at 1,000lbmol/hr. The column is at 14.7 psia. A distillate that is 95...

1. A distillation column receives a feed that is 40 mole %n-pentane and 60 mole % n-hexane. Feed flow rate is 2,500lbmol/hr. The column is at 1atm. A distillate that is 97 mole \% n-pentane is...

Problem 3 (15 points): A distillation column receives a feed that is 40 mole %i butane and 60 mole % i-pentane. Feed is saturated liquid at 1,000lbmol/hr. The column is at 14.7 psia. A distillate...

using matlab A distillation column receives a feed that is 40 mole % n-pentane and 60 mole % n-hexane. Feed is saturated liquid at 2,500lbmol/hr. The column is at 1atm. A distillate that is 97mole%n...

Equilibrium K values ln(K) = (-1166846/T^2) + 7.72668 - 0.92213 ------ i-Butane ln(K) = (-1481583/T^2) + 7.58071 - 0.93159 ------ i-Pentane P is in psia and T is in R (A) Find the number of...

using matlab A distillation column receives a feed that is 40 mole \% n-pentane and 60 mole \% n-hexane. Feed is saturated liquid at 2,500lbmol/hr. The column is at 1atm. A distillate that is...

A distillation column receives a feed that is $30 \mathrm{~mol} \% \mathrm{n}-\mathrm{pentane}$ and 70 $\mathrm{mol} \% \mathrm{n}$-hexane. Feed flow rate is $3600 \mathrm{lbmol} / \mathrm{h}$,...

Question #1 Determine the optimal-stage location for each feed and the number of theoretical stages required for the distillation separation shown in the Figure, using the following vapor-liquid data...

Use a process simulator to find the optimum feed stage and total number of equilibrium stages for Problem 3.D6. Report the VLE correlation used. Record the values of $Q_{\text {condenser }}$ and...

Repeat Problem 5.H1, but with a feed that is $48.5 \mathrm{~mol} \%$ benzene, $26.0 \mathrm{~mol} \%$ toluene, and remainder xylenes. After solving Problem 5.H1, H4 should be quite...
