Question: Problem 4 : A frictionless pulley ( radius = 0 . 5 m ) attached to a cantilever beam at point B has a mass

Problem 4:

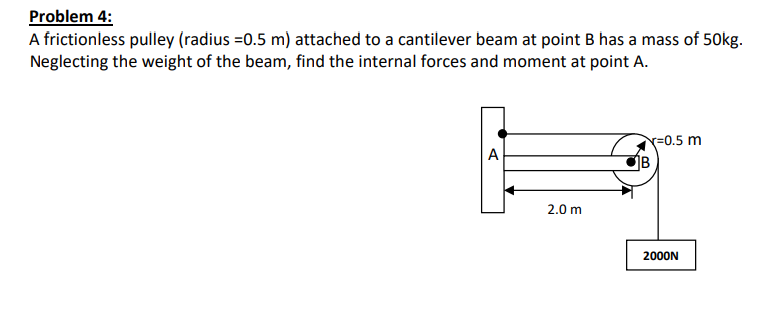

A frictionless pulley (radius =0.5m) attached to a cantilever beam at point B has a mass of 50 kg .
Neglecting the weight of the beam, find the internal forces and moment at point A.
Problem 4 : A frictionless pulley ( radius = 0 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
