Question: Problem 4 A trapezoidal body ABCD is uniformly deformed such that C and D have moved to C ' and D ' as shown. Determine

Problem 4

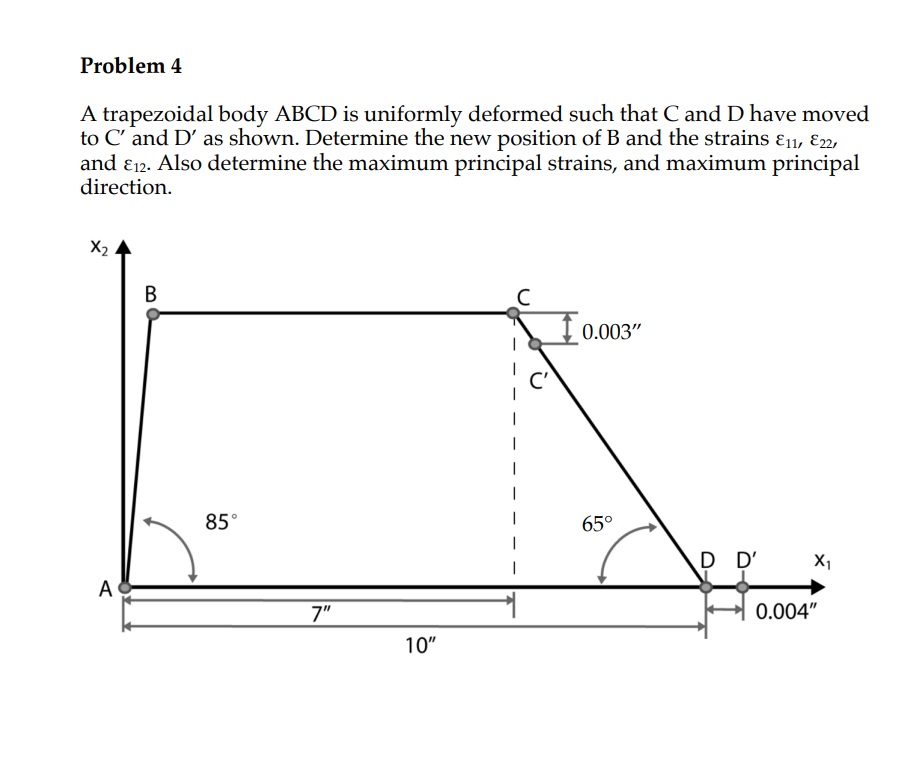

A trapezoidal body ABCD is uniformly deformed such that C and D have moved to C' and D' as shown. Determine the new position of B and the strains 11,22, and 12. Also determine the maximum principal strains, and maximum principal direction.
x2
Problem 4 A trapezoidal body ABCD is uniformly

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
