Question: Problem 4 . Determine the force in members GF , FB , and BC of the Fink truss and state if the members are in

Problem 4. Determine the force in members GF, FB, and BC of the Fink truss and state if the members are in tension or compression.

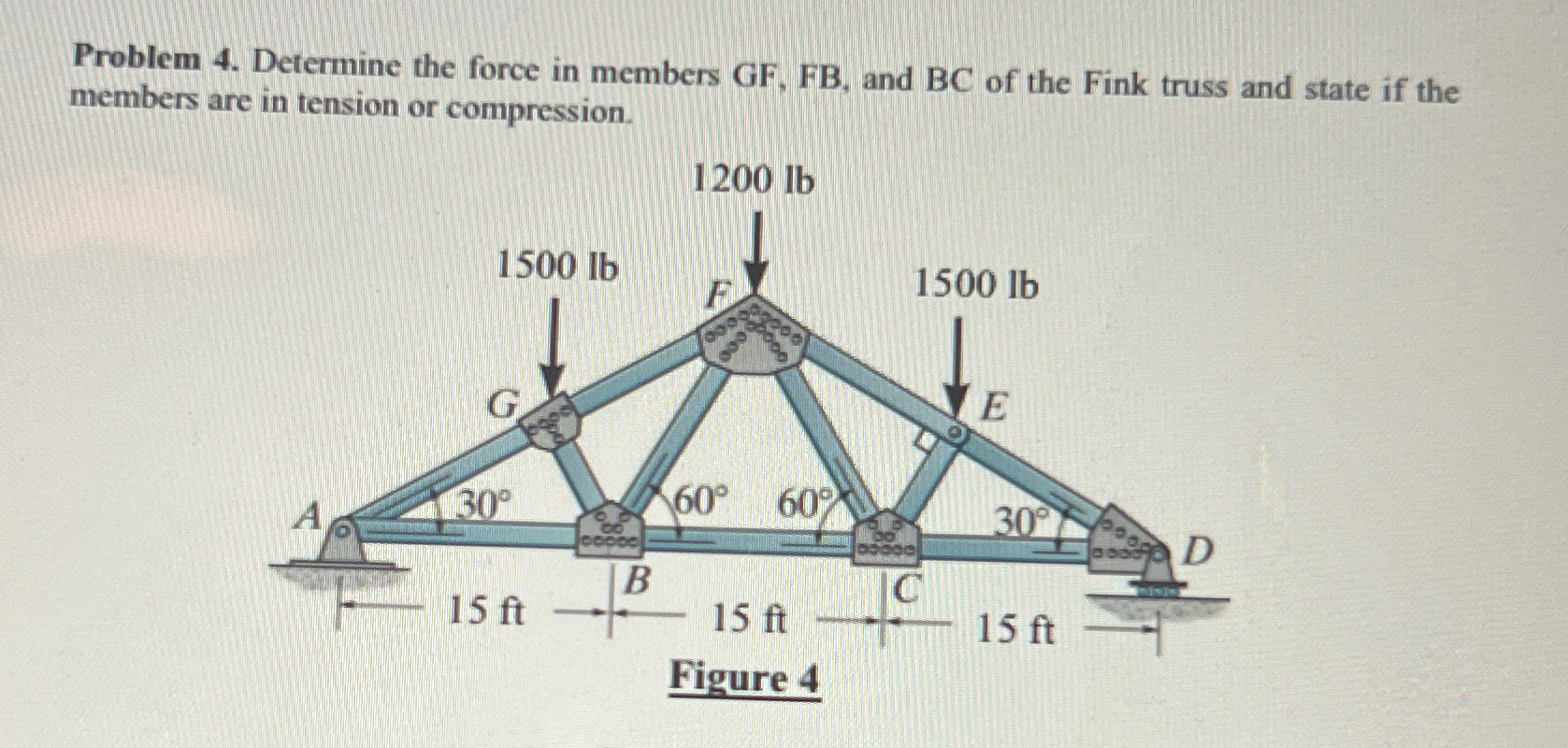

Figure 4
Problem 4 . Determine the force in members GF ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the force in members GF, FB, and BC of the Fink truss and state if the members are in tension or compression. 600 lb 800 lb 800 lb E 60 30 60 30 D -10 ft -10 ft- -10 ft-

Q:

as Review Determine the force in members DC, HI and JI of the truss State if the members are in tension of compression Take that R-1090 lb and F) - 1760 lb Suggestion Use the sections shown (Figure...

Q:

Determine the force in members GF, FB, and BC of the Fink truss and state if the members are in tension or compression.

Q:

Determine the force in members GF, GD, and CD of the truss and state if the members are in tension or compression. 1 m 2m A H B -2m-2m- 10 kN G C -2 m- D -2 m- 25 kN 15 kN

Q:

Determine the force in members BG, HG, and BC of the truss and state if the members are in tension or compression. 4.5 m 3 m D 7 kN 6 kN 4 kN 12 m, 4 @ 3 m

Q:

Determine the force in members EF, CF, and BC of the truss and state if the members are in tension or compression. G 30 6 ft B 300 lb F -6 ft- 300 lb E 30 6 ft

Q:

Determine the force in members GF, GD, and CD of the truss and state if the members are in tension orcompression. 260 Ib 4 ft 12 3ft 3 ft IF -4 ft- - 4 4 ft- -4 ft

Q:

Determine the force in members BG, HG, and BC of the truss and state if the members are in tension or compression. Units Used: kN = 103 N Given: F1 = 6kN F2 = 7kN F3 = 4kN a = 3 m b = 3 m c = 4.5 m ...

Q:

Part A Determine the force in members BC, CF, and FE. State if the members are in tension or compression. Take that P = 640 kN and P = 770 kN. (Figure 1) Determine the force in the member CF, and...

Q:

6-34. The Howe truss is subjected to the loading shown. Determine the force in members GH, BC, and BG of the truss and state if the members are in tension or compression. 3 m 2 kN 5 kN 2 m 5kN 5kN 2...
