Question: Problem 4 : Determine the length b of the triangular load and its position a on the beam such that the equivalent resultant force is

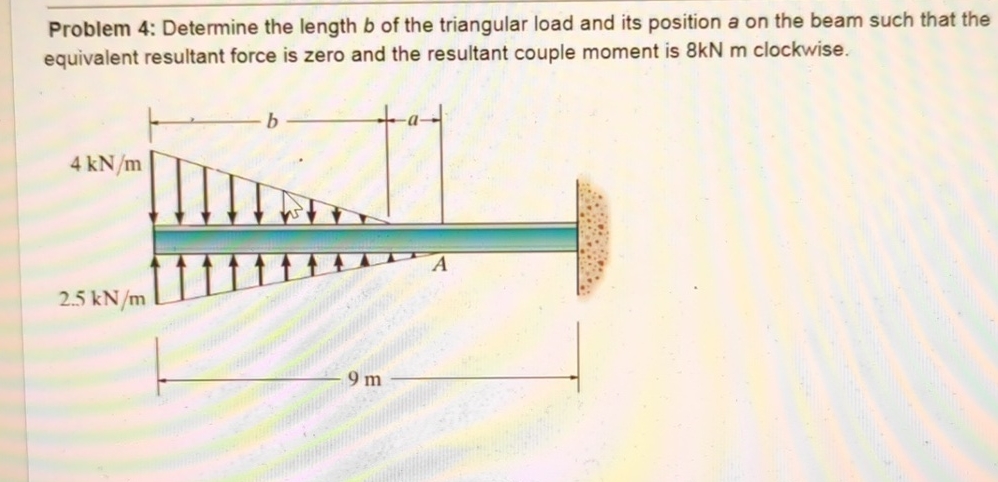

Problem 4: Determine the length b of the triangular load and its position a on the beam such that the
equivalent resultant force is zero and the resultant couple moment is 8 kN m clockwise.
Problem 4 : Determine the length b of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Determine the length b of the triangular load and its position a on the beam such that the equivalent resultant force is zero and the resultant couple moment is 8 kN-m clockwise. 4 kN/m 2.5 kN/m b -9...

Q:

Determine the length b of the triangular load and its position a on the beam such that the equivalent resultant force is zero and the resultant couple moment is 8 kNm clockwise. 6 kN/m 2 kN/m 4 m

Q:

Determine the length b of the triangular load and its position a on the beam such that the equivalent resultant force is zero and the resultant couple moment is clockwise. 4 kN/m 2.5 kN/m III 1111 -...

Q:

Determine the length b of the triangular load and its position a on the beam such that the equivalent resultant force is zero and the resultant couple moment is M clockwise. Units Used: kN = 103 N...

Q:

Determine the length b of the triangular load it's position a on the beam such that the equivalent resultant force is zero and the resultant couple moment is 8kN * m clockwise

Q:

Please explain by saying the Given:Finding:- Sketch Solution:- how to solve it. Question:Determine the length b of the triangular load and it's position a on the beam such that equivalent resultant...

Q:

The beam is subjected to the distributed loading. Determine the length b of the uniform load and its position a on the beam such that the resultant force and couple moment acting on the beam are...

Q:

ENGG 202 - Engineering Statics - Winter 2024 Worksheet 4 - Couple Moment, Force-couple Systems, Centroids, and Distributed Loading\ Question 3: (recommended time - 15 minutes)\ Replace the loading...

Q:

Q5 Modules 3 and 4: Equilibrium of a supported beam subject to concentrated and distributed loadings A 12 kN 9 kN/m 1.5 m 1.5 m 1.5 m 1.5 m A beam AB is subjected to the distributed and concentrated...

Q:

Part A Determine the magnitude of the equivalent resultant force. Express your answer in pounds to three significant figures. Templates Symbols Slope/Displaceme Vector undo redo reset keyboard...
