Problem $4$: Elastodynamics $(30$ Points$)$

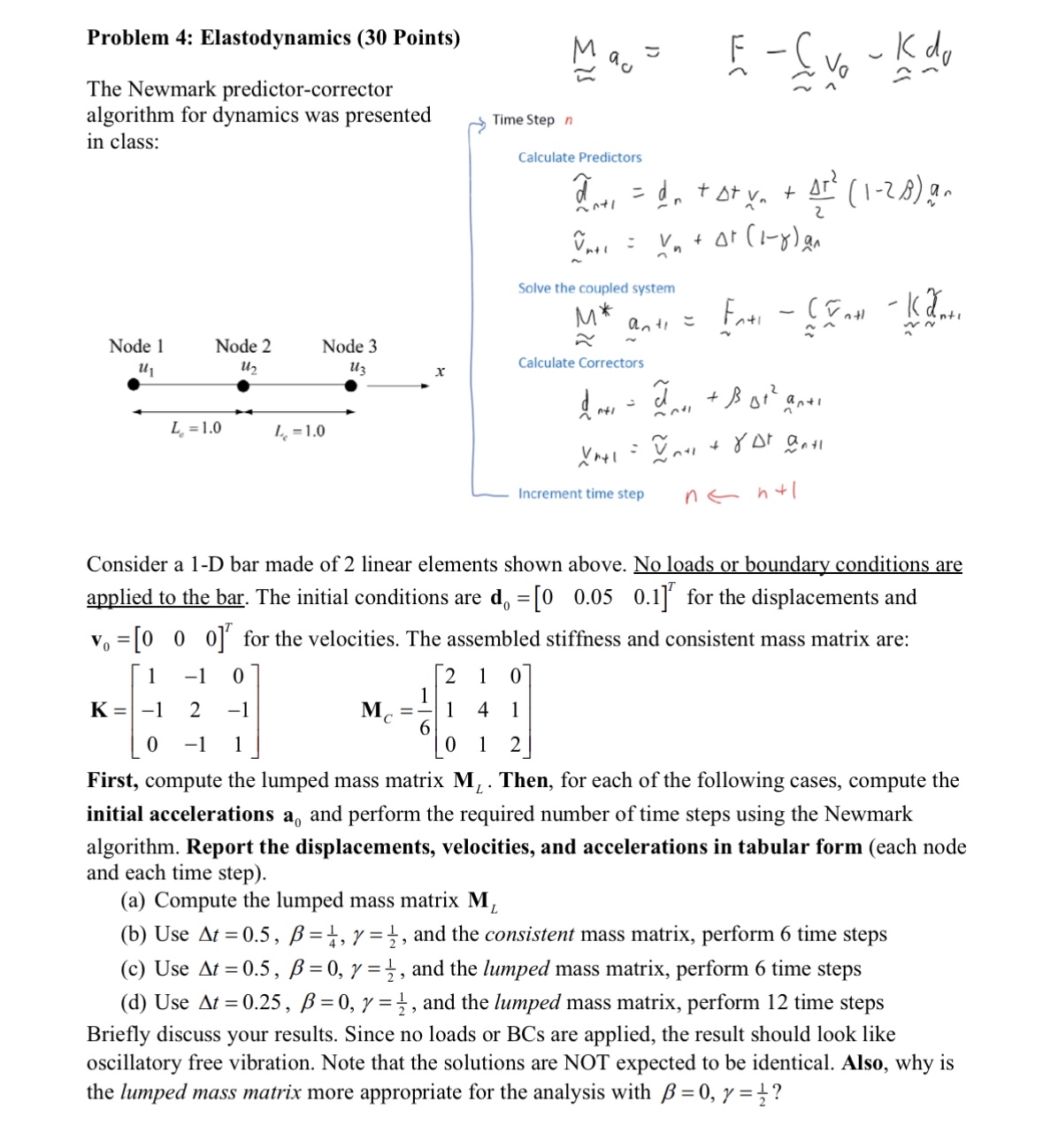

The Newmark predictor$-$corrector algorithm for dynamics was presented in class:

Consider a $1-$D bar made of $2$ linear elements shown above. No loads or boundary conditions are applied to the bar. The initial conditions are $d_0={\left[\begin{array}{ccc}0& 0\mathrm{.}05& 0\mathrm{.}1\end{array}\right]}^T$ for the displacements and $v_0={\left[\begin{array}{ccc}0& 0& 0\end{array}\right]}^T$ for the velocities. The assembled stiffness and consistent mass matrix are: $K=\left[\begin{array}{ccc}1& -1& 0\\ -1& 2& -1\\ 0& -1& 1\end{array}\right]$

$M_C=\frac{1}{6}\left[\begin{array}{ccc}2& 1& 0\\ 1& 4& 1\\ 0& 1& 2\end{array}\right]$

First, compute the lumped mass matrix $M_L.$ Then, for each of the following cases, compute the initial accelerations $a_0$ and perform the required number of time steps using the Newmark algorithm. Report the displacements, velocities, and accelerations in tabular form $($each node and each time step$).$

$($a$)$ Compute the lumped mass matrix $M_L$

$($b$)$ Use $t=0\mathrm{.}5,=\frac{1}{4},=\frac{1}{2},$ and the consistent mass matrix, perform $6$ time steps

$($c$)$ Use $t=0\mathrm{.}5,=0,=\frac{1}{2},$ and the lumped mass matrix, perform $6$ time steps
