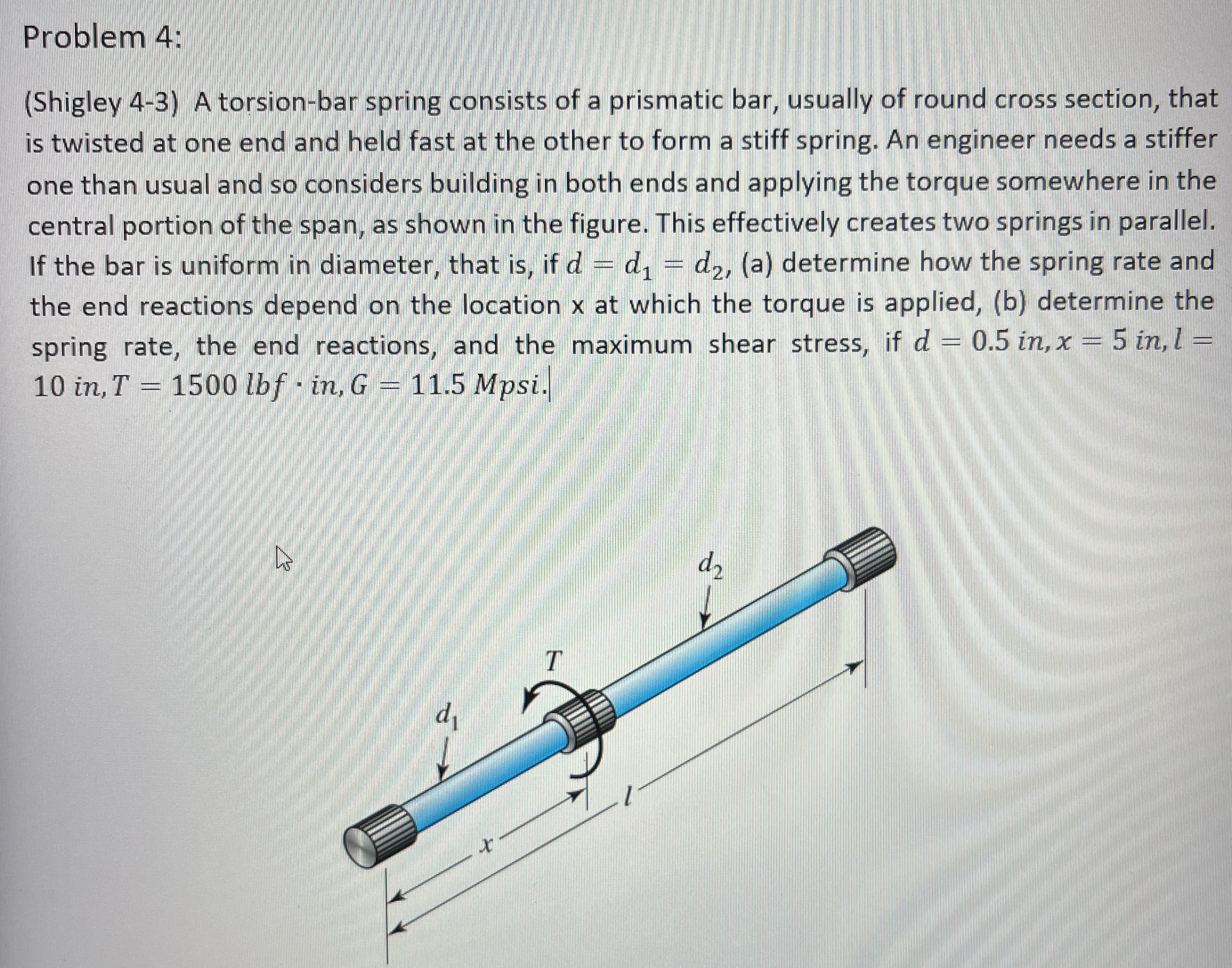

Problem $4$:

$($Shigley $4-3)$ A torsion$-$bar spring consists of a prismatic bar, usually of round cross section, that

is twisted at one end and held fast at the other to form a stiff spring. An engineer needs a stiffer

one than usual and so considers building in both ends and applying the torque somewhere in the

central portion of the span, as shown in the figure. This effectively creates two springs in parallel.

If the bar is uniform in diameter, that is$,$ if $d=d_1=d_2,($a$)$ determine how the spring rate and

the end reactions depend on the location x at which the torque is applied, $($b$)$ determine the

spring rate, the end reactions, and the maximum shear stress, if $d=0\mathrm{.}5in,x=5in,l=$

$10in,T=1500lbf*in,G=11\mathrm{.}5M.$
