Question: Problem 4 The beam shown below has a fixed support at B and a roller support at A . Find: 1 ) the support reactions,

Problem 4

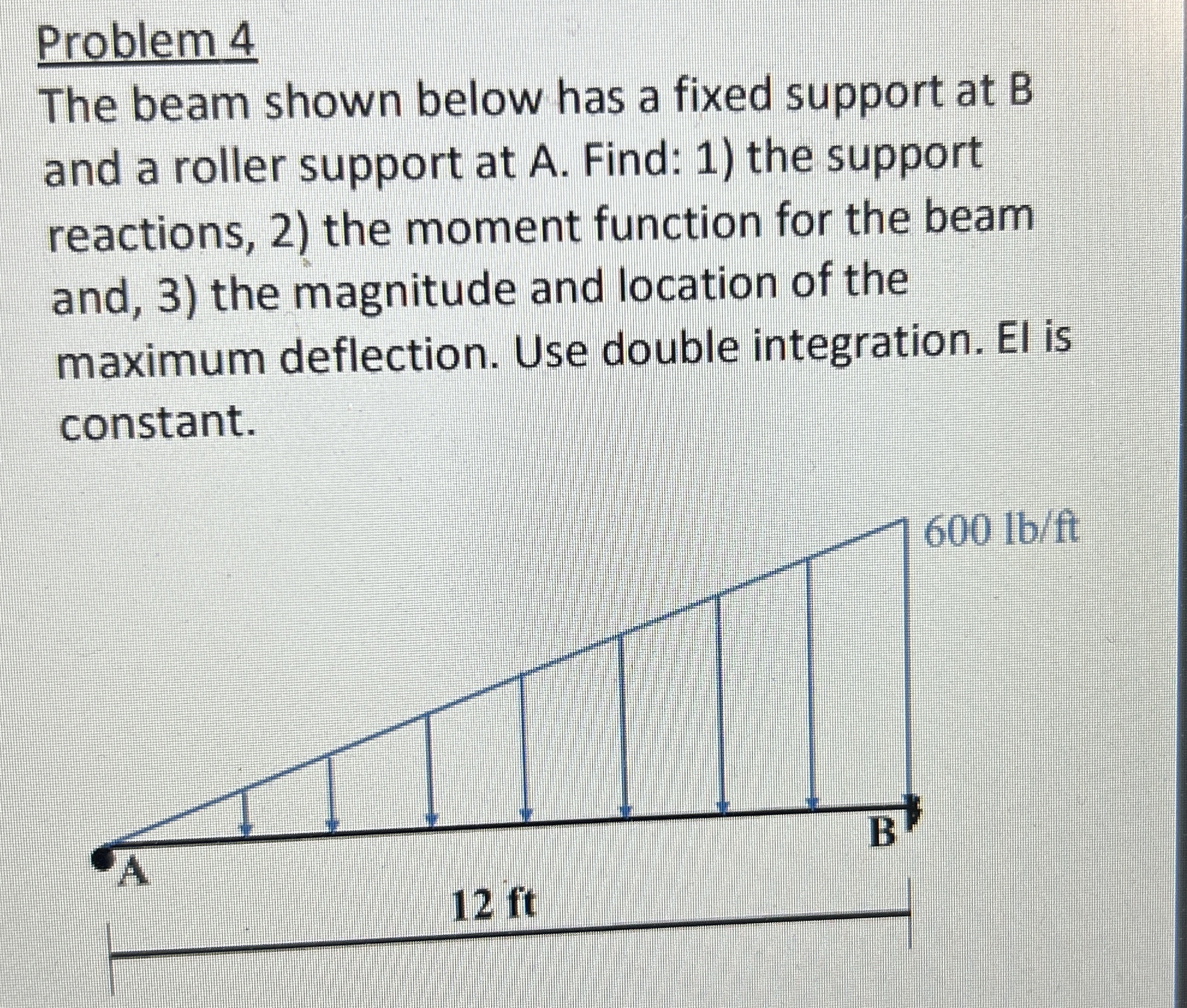

The beam shown below has a fixed support at B and a roller support at A. Find: 1) the support reactions, 2) the moment function for the beam and, 3) the magnitude and location of the maximum deflection. Use double integration. El is constant.
Problem 4 The beam shown below has a fixed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
